PC8171xNIP1B Specifications Datasheet by SHARP/Socle Technology

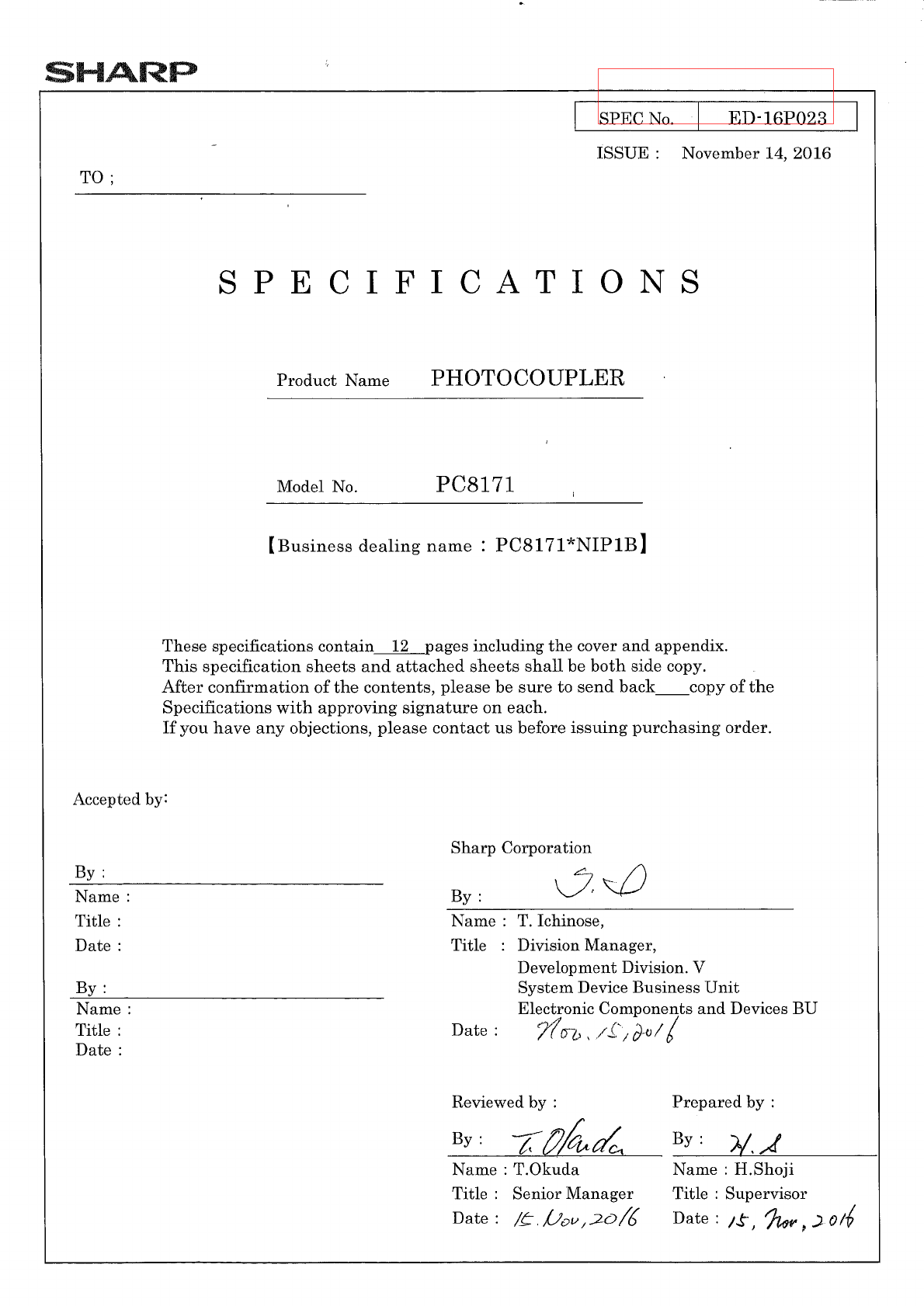

SHARP Fn-16P02‘2 November 14, 20 16 Q'PF‘F Nn , ISSUE 3 TO ; Product Name PHOTOCOUPLER Model No. P08171 ‘ l Business dealing name 2 PCSI71*NIP1B] These speciﬁcations contain 12 pages including the cover and appendix. This speciﬁcation sheets and attached sheets shall be both side copy, After conﬁrmation of the contents, please be sure to send back copy of the Speciﬁcations with approving signature on each. If you have any objections, please contact us before issuing purchasing order. Accepted by! Sharp Corporation By ; {ﬂ Name : By : & Title : Name : Ti Ichinose, Date : Title : Division Manager, Development Division. V By System Device Business Unit Name 1 Electronic Components and Devices BU Title : Date : 7707; ‘ A) 90/ 1/ Date : Reviewed by : Prepared by : . / . By- aﬂwé By. 1M Name : TiOkuda Name : H.Shoji Title : Senior Manager Title : Supervisor Date: /5 [/9»,,20/6 Date: /$, %¢')o/{

REFERENCE

SHARP

PC8171*NIP1B

1/10

1. These specification sheets include materials protected under copyright of Sharp Corporation ("Sharp").

Please handle with great cares and do not reproduce or cause anyone to reproduce them without Sharp's consent.

2. When using this Sharp product, please observe the absolute maximum ratings, other conditions and instructions for use

described in the specification sheets, as well as the precautions mentioned below.

Sharp assumes no responsibility for any damages resulting from use of the product which does not comply with absolute

maximum ratings, other conditions and instructions for use included in the specification sheets, and the precautions

mentioned below.

(Precautions)

(1) In making catalogue or instruction manual based on the specification sheets, please verify the validity of the catalogue

or instruction manuals after assembling Sharp products in customer's products at the responsibility of customer.

(2) This Sharp product is designed for use in the following application areas ;

• Computers • OA equipment • Telecommunication equipment (Terminal) • Measuring equipment

• Tooling machines ・Audio visual equipment • Home appliances

If the use of the Sharp product in the above application areas is for equipment listed in paragraphs (3) or (4),

please be sure to observe the precautions given in those respective paragraphs.

(3) Appropriate measures, such as fail-safe design and redundant design considering the safety design of the overall

system and equipment, should be taken to ensure reliability and safety when Sharp product is used for equipment

in responsibility of customer which demands high reliability and safety in function and precision, such as ;

• Transportation control and safety equipment (aircraft, train, automobile etc.)

• Traffic signals • Gas leakage sensor breakers • Rescue and security equipment

• Other safety equipment

(4)Sharp product is designed for consumer goods and controlled as consumer goods in production and quality.

Please do not use this product for equipment which require extremely high reliability and safety in function and

precision, such as ;

• Space equipment • Telecommunication equipment (for trunk lines)

• Nuclear power control equipment • Medical equipment

(5) Please contact and consult with a Sharp sales representative if there are any question regarding interpretation of

the above four paragraphs.

3. Disclaimer

The warranty period for Sharp product is one (1) year after shipment.

During the period, if there are any products problem, Sharp will repair (if applicable), replace or refund.

Except the above, both parties will discuss to cope with the problems.

The failed Sharp product after the above one (1) year period will be coped with by Sharp, provided that both parties

shall discuss and determine on sharing responsibility based on the analysis results thereof subject to the above scope

of warranty.

The warranty described herein is only for Sharp product itself which are purchased by or delivered to customer.

Damages arising from Sharp product malfunction or failure shall be excepted.

Sharp will not be responsible for the Sharp product due to the malfunction or failures thereof which are caused by:

(1) storage keep trouble during the inventory in the marketing channel.

(2) intentional act, negligence or wrong/poor handling.

(3) equipment which Sharp products are connected to or mounted in.

(4) disassembling, reforming or changing Sharp products.

(5) installation problem.

(6) act of God or other disaster (natural disaster, fire, flood, etc.)

(7) external factors (abnormal voltage, abnormal electromagnetic wave, fire, etc.)

(8) special environment (factory, coastal areas, hotspring area, etc.)

(9) phenomenon which cannot be foreseen based on the practical technologies at the time of shipment.

(10) the factors not included in the product specification sheet.

4. Please contact and consult with a Sharp sales representative for any questions about Sharp product.

REFERENCE

PC8171*NIP1B

2/10

1. Application

This specification applies to the outline and characteristics of photocoupler Model No. PC8171 series (Lead-Free Type).

2. Outline Refer to the attached sheet, page 4.

3. Ratings and characteristics Refer to the attached sheet, page 5, 6.

4. Reliability Refer to the attached sheet, page 7.

5. Outgoing inspection Refer to the attached sheet, page 8.

6. Supplement

6.1 Isolation voltage shall be measured in the following method.

(1) Short between anode and cathode on the primary side and between collector and emitter on the secondary side.

(2) The dielectric withstanding tester with zero-cross circuit shall be used.

(3) The wave form of applied voltage shall be a sine wave.

(It is recommended that the isolation voltage be measured in insulation oil.)

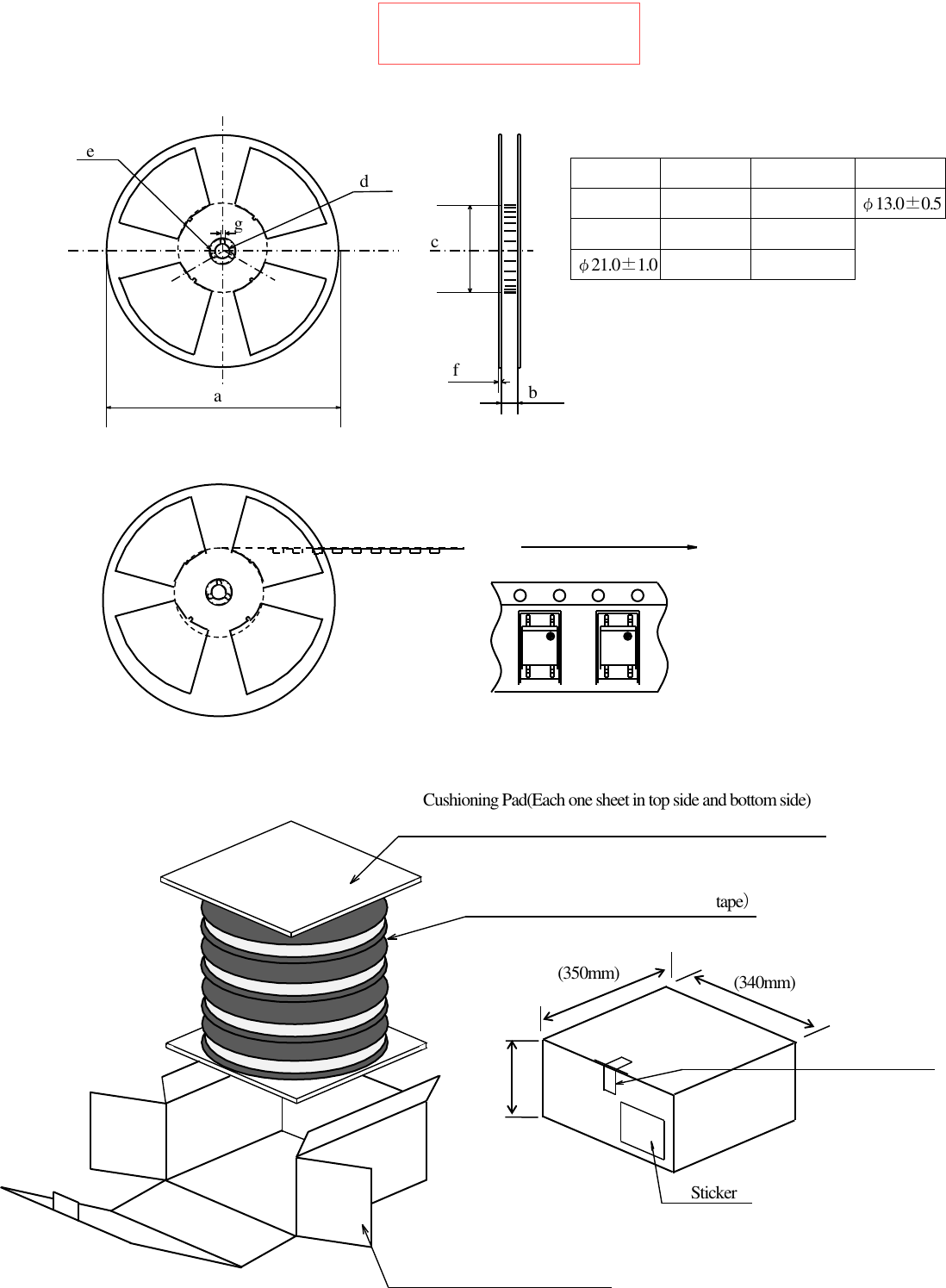

6.2 Package specifications Refer to the attached sheet, page 9, 10.

6.3 Collector current (Ic) Delivery rank table ( "○" mark indicates business dealing name of ordered product)

Rank at

delivery

Business

dealing name Rank mark Ic (mA)

PC81710NIP1B

With or without

0.5 to 3.0

PC81711NIP1B

A

0.6 to 1.5

PC81712NIP1B

B

0.8 to 2.0

PC81713NIP1B

C

1.0 to 2.5

PC81716NIP1B

B or C

0.8 to 2.5

6.4 This Model is approved by UL. (Under preparation).

Approved Model No. : PC8171

UL file No. : E64380

6.5 This product is not designed against irradiation.

This product is assembled with electrical input and output.

This product incorporates non-coherent light emitting diode.

6.6 ODS materials

This product shall not contain the following materials.

Also, the following materials shall not be used in the production process for this product.

Materials for ODS : CFCS, Halon, Carbon tetrachloride, 1.1.1-Trichloroethane (Methyl chloroform)

6.7 Specified brominated flame retardants

Specified brominated flame retardants (PBB and PBDE) are not used in this device at all

Test conditions

IF=0.5mA

VCE=5V

Ta=25℃

REFERENCE

PC8171*NIP1B

3/10

6.8 Compliance with each regulation

(1) The RoHS directive(2011/65/EU)

This product complies with the RoHS directive(2011/65/EU) .

Object substances: mercury, lead, cadmium, hexavalent chromium, polybrominated biphenyls（PBB）

and polybrominated diphenyl ethers（PBDE）

(2) Content of six substances specified in Management Methods for Control of Pollution Caused by Electronic

Information Products Regulation (Chinese : 电子信息产品污染控制管理办法).

Marking Styles for the Names and Contents of the Hazardous Substances

Category

Hazardous Substances

Lead

(Pb)

Mercury

(Hg)

Cadmium

(Cd)

Hexavalent

chromium

(Cr6+)

Polybrominated

biphenyls

(PBB)

Polybrominated

diphenyl ethers

(PBDE)

Photocoupler ○ ○ ○ ○ ○ ○

This table is prepared in accordance with the provisions of SJ/T 11364.

○：Indicates that said hazardous substance contained in all of the homogeneous materials for this part is

below the limit requirement of GB/T 26572

7. Notes

Precautions for photocouplers ： Attachment-1

(Notice)

The contents described herein are subject to change without notice for improvement since this product is under development.

REFERENCE

Rank mark Anrxl: mark Date Code *1 Iv 7.62 $0.30 +4» 10 0.25 \ Epoxy resm Factory idenliﬁcminn mark (‘2 A lead Lip area and a pan of a lad side area ( m LN : l/lmm Namc

PC8171*NIP1B

4/10

UNIT : 1/1mm

Name

PC8171 Outline Dimensions

(Business dealing name : PC8171*NIP

1B)

Product mass : Approx. 0.22g

Pin-Number and internal connection diagram

③ Emitter

④ Collector

Anode

①

Cathode

②

Anode mark

Factory identification mark *2

Date code *1

８１７１

Rank mark

Ｓ

Traceability code

Epoxy resin

0.25

0.10

+0.10

-

0.05

7.62 ± 0.30

+0.10

-

0.05

2. Outline

①

②

③

④

2.54 ± 0.25

1.25 ± 0.15

4.60 ± 0.35

6.5 ± 0.5

*1)

Date code :

3

digit indication according to production year and week

*2) Factory identification mark apply to the below

K : Kyushu Denshi Co.,Ltd. (Japan products)

A lead tip area and a part of a lead side area ( area) are no-plating.

Pin material : Copper Alloy

Pin finish : SnBi plating (Bi : 1～4%)

Mark : laser marking

0.9 ± 0.4

9.6 ± 0.4

3.5 ± 0.5

REFERENCE

Tn:25 )C Transfer -leﬁslics Vnp W

PC8171*NIP1B

5/10

V

CM

Vnp

R

L

V

CM

:

Higher value of pulse wave

R

L

= 470

Ω

V

CC

VCC

= 9V

Vnp

※

1

Vcp

(Vcp

≒dv/dt

×

Cf

×

RL )

*1 The voltage generated by a displacement current

which flow through floating capacity between primary

and secondary side

(dv/dt)

V

CM

V

O

3. Ratings and characteristics

3.1 Absolute maximum ratings Ta=25℃

Parameter

Symbol

Rating

Unit

Input

Forward current *1

IF

10

mA

Peak forward current *2

IFM

200

mA

Reverse voltage

VR

6

V

Power dissipation *1

P

15

mW

Output

Collector-emitter voltage

VCEO

80

V

Emitter-collector voltage

VECO

6

V

Collector current

Ic

50

mA

Collector power dissipation *1

Pc

150

mW

Total power dissipation *1

Ptot

170

mW

Operating temperature

Topr

-30 to +100

℃

Storage temperature

T

stg

-55 to +125

℃

Isolation voltage *3

Viso (rrms)

5

kV

Soldering temperature *4

Tsol

270

℃

3.2 Electro-optical characteristics Ta=25℃

Parameter

Symbol

Condition

MIN.

TYP.

MAX.

Unit

Input

Forward voltage

VF

IF=5mA

-

1.2

1.4

V

Reverse current

IR

VR=4V

-

10

μ

A

Terminal capacitance

Ct

V=0, f=1kHz

-

30

250

pF

Output

Dark current

ICEO

VCE=50V, IF=0

-

100

nA

Collector-emitter

breakdown voltage

BVCEO Ic=0.1mA, IF=0 80 - - V

Emitter-Collector

breakdown voltage

BVECO Ic=10μA, IF=0 6 - - V

Transfer

charac

-teristics

Collector current

Ic

IF=0.5mA, VCE=5V

0.5

-

3.0

mA

Collector-emitter

saturation voltage

VCE (sat) IF=10mA, Ic=1mA - - 0.2 V

solation resistance

RISO

DC500V 40 to 60%RH

5

×

1010

1011

-

Ω

Floating capacitance

Cf

V=0, f=1MHz

-

0.6

1.0

pF

Response time (Rise)

t r

V

CE

=2V, I

c

=2mA

RL=100

Ω

-

4

18

μ

s

Response time (Fall)

t f

-

3

18

μ

s

Common mode

rejection ratio *5 CMR

Ta=25℃, R

L

=470Ω

VCM=1.5kV(peak),

IF=0, Vcc=9V,

Vnp=100mV

10 - - kV/μs

*1 The derating factors of absolute maximum ratings due to ambient temperature are shown in Fig. 1 to 4.

*2 Pulse width≦100μs, Duty ratio : 0.001 (Refer to Fig. 5)

*3 AC for 1 min, 40 to 60%RH

*4 For 10s

*5 Measuring circuit

REFERENCE

10 l) 730 725 0 25 50 75 100 125 200 150 100 50 0 730 725 0 25 50 75 100 E 100w Ta : 25C 2000 1000 500 200 100 50 20 10 10“ 10 10‘ 10 [25 15 10 (J 30 725 (J 25 50 75 [00 125 200 170 150 \ l) 30 725 0 25 50 75 100 125

PC8171*NIP1B

6/10

0

25

75

100

-30

Forward current I

F

(mA)

Diode power dissipation P (mW)

125

10

5

50

0

25

75

100

-30

125

15

10

5

50

Ambient temperature Ta (

℃

)

Ambient temperature Ta (

℃

)

(Fig. 2) Diode power dissipation

vs. Ambient temperature

(Fig. 1) Forward current

vs. Ambient temperature

(Fig. 3) Collector power dissipation

vs. Ambient temperature

(Fig. 4) Total power dissipation

vs. Ambient temperature

200

150

100

50

0

25

50

75

100

-30

125

0

25

50

75

100

50

100

150

200

-30

170

125

Ambient temperature Ta (

℃

)

Collector power dissipation P

c

(mW)

Total power dissipation P

tot

(mW)

Ambient temperature Ta (

℃

)

Peak forward current I

FM

(mA)

10

20

50

100

200

500

1000

2000

10

-

3

10

-

2

-

1

0

Duty ratio

Pulse width

≦

100

μ

s

Ta = 25

℃

(Fig. 5) Peak forward current vs. Duty ratio

-25

REFERENCE

Samples (n

PC8171*NIP1B

7/10

θ

4. Reliability

The reliability of products shall satisfy items listed below. Confidence level : 90%

LTPD : 10 or 20

Test Items Condition Failure Judgment

Criteria Samples (n)

Defective (C)

Solderability 245±3ºC, 5s

*2

n=11, C=0

Soldering heat (Flow soldering) 270ºC, 10 s

VF ＞U×1.2

IR ＞U×2

ICEO ＞U×2

IC ＜L×0.7

VCE(sat)＞U×1.2

U: Upper specification limit

L: Lower specification limit

n=11, C=0

(Soldering by hand) 400ºC, 3 s

Terminal strength

(Tension)

Weight: 5N 5 s/each terminal n=11, C=0

Terminal strength

(Bending) *3

Weight: 2.5N 2 times/each terminal n=11, C=0

Mechanical shock

15km/s2, 0.5ms

3 times/

±

X,

±

Y,

±

Z direction

n=11, C=0

Variable frequency

vibration

100 to 2000 to 100Hz/4 min 200m/s2

4 times/X, Y, Z direction

n=11, C=0

Temperature cycling

1 cycle –55 ºC to +125 ºC

(30 min) (30 min)

20 cycles test

n=22, C=0

High temp. and high

Humidity storage

+85ºC, 85%RH, 1000h n=22, C=0

High temp. storage

+125 ºC, 1000h

n=22, C=0

Low temp. storage -55 ºC, 1000h n=22, C=0

Operation life

I

F

=10mA, P

tot

=170mW

Ta=25 ºC, 1000h

n=22, C=0

*1 Test method, conforms to EIAJ ED 4701.

*2 The product whose not-soldered area is more than 5% for all of the dipped area

and/or whose pinholes or voids are concentrated on one place shall be judged defect.

*3 Terminal bending direction is shown below.

REFERENCE

PC8171*NIP1B

8/10

5. Outgoing inspection

5.1 Inspection items

(1) Electrical characteristics

VF, IR, ICEO, VCE(sat), Ic, RISO, Viso

(2) Appearance

5.2 Sampling method and Inspection level

LTPD sampling inspection confidence level：90％

Defect Inspection item LTPD（％）

Major defect

Electrical characteristics(faiure)

Marking (Unreadable)

Lead form (Deformation) 3

Minor defect Appearance defect except

the above mentioned. 50

REFERENCE

0.401005

PC8171*NIP1B

9/10

A

5

°

max

B

C

G

D

E

F

H

K

H

I

J

+0.1

-0

6.2 Package specifications

6.2.1 Taping conditions

(1) Tape structure and Dimensions ( Refer to below in this page. )

The carrier tape has the heat pressed structure of PS material carries tape and PET material cover tape.

(2) Reel structure and Dimensions (Refer to the attached sheet, Page 10)

The taping reel shall be of plastic (PS material)

(3) Direction of product insertion (Refer to the attached sheet, Page 10)

(4) The cover tape and carrier tape in one weel shall be joint less.

(5) To repair failure-taped devices, cutting a bottom of carrier tape or a cover tape with a cutter.

After replacing the cut portion shall be sealed with adhesive tape.

6.2.2 Adhesiveness of cover tape

The exfoliation force between carrier tape and cover tape shall be 0.2N to 0.7N

6.2.3 Rolling method and quantity

Wind the tape back on the reel so that the cover tape will be outside the tape.

Attach more than 18cm of blank tape to the trailer and the leader of the tape

And fix the leader with adhesive tape. One reel basically contain 2000pcs

6.2.4 Outer packing appearance (Refer to the attached sheet, Page 10)

6.2.5 The label with following information shall be pasted at appointed place of the outer packing case.

*Model No. *( Business dealing name ) *Lot No. *Quantity

*Country of origin *Company name *Inspection date specified

6.2.6 Storage condition

Taped products shall be stored at the temperature 5 to 30℃ and the humidity 70%RH or less

away from direct sunlight.

6.2.7 Safety protection during shipping

There shall be no deformation of component or degradation of electrical characteristics due to shipping.

Carrier tape structure and Dimensions

Dimensions list (Unit : mm)

A

B

C

D

E

F

G

H

I

J

K

16.0±0.3 7.5±0.1 1.75±0.1 8.0±0.1 2.0±0.1 4.0±0.1

φ

1.5 10.3±0.1 0.40±0.05

4.0±0.1 5.3±0.1

REFERENCE

c) 13.0i05 $21.0i11) OOOO Cushioning Pad(Ead1 one sheet in top side and bonom side)

PC8171*NIP1B

10/10

Pull-out direction

Direction of product insertion

Reel structure and Dimensions

a b c d

(330) 17.5±1.5 φ100.0±1.0 φ13.0±0.5

e f g

φ21.0±1.0

2.0±0.5 2.0±0.5

Dimensions list (Unit : mm)

d

e

a

f

c

b

g

Outer packing appearance

Regular packing mass : Approx. 3.4kg

( )：Reference dimensions

Packing case (corrugated cardboard)

Cushioning Pad(Each one sheet in top side and bottom side)

(PE with antis

tatic treatment)

Sealing tape

（

Cellophane）

Sticker

(100mm)

(350mm)

(340mm)

Product

（

4reels including carrier tape）

REFERENCE

200C Precamion Photocouplers 1min 2min 3min

PC8171*NIP1B

Attachment-1

Pre-heat

150℃ to 180℃, 120s or less

Reflow

220℃ or more, 60s or less

Terminal

：

260

℃

peak

(Package surface：250℃ peak)

1min

2min

3min

4min

100

℃

200℃

300

℃

Precautions for Photocouplers

1 Cleaning

(1) Solvent cleaning : Solvent temperature 45℃ or less

Immersion for 3 min or less

(2) Ultrasonic cleaning : The effect to device by ultrasonic cleaning differs by cleaning bath size, ultrasonic power output,

cleaning time, PCB size or device mounting condition etc. Please test it in actual using condition

and confirm that any defect doesn't occur before starting the ultrasonic cleaning.

(3) Applicable solvent : Ethyl alcohol, Methyl alcohol, Isopropyl alcohol

When the other solvent is used, there are cases that the packaging resin is eroded.

Please use the other solvent after thorough confirmation is performed in actual using condition.

2. Circuit design

(1) The LED used in the Photocoupler generally decreases the light emission power by operation.

In case of long operation time, please design the circuit in consideration of the degradation

of the light emission power of the LED. (50%/5years)

(2) There are cases that the deviation of the CTR and the degradation of the relative light emission power

of the LED increase when the setting value of IF is less than 0.5mA. Please design the circuit in consideration of this point

(3) When steep voltage noise is applied between the primary side and the secondary side of the photocoupler,

current flows or changes in the light emitting diode through a parasitic capacitance between the primary side and

the secondary side of the photocoupler, then there is a case that miss operation occurs depending upon the applied noise level.

We should certainly recommend to use a by-pass capacitor between both terminals of the light emitting diode

where used in noisy environment.

3. Precautions for Soldering

(1) In the case of flow soldering (Whole device dipping .)

It is recommended that flow soldering should be at 270℃ or less for 10 s or less

(Pre-heating : 100 to 150℃, 30 to 80s). (2 times or less)

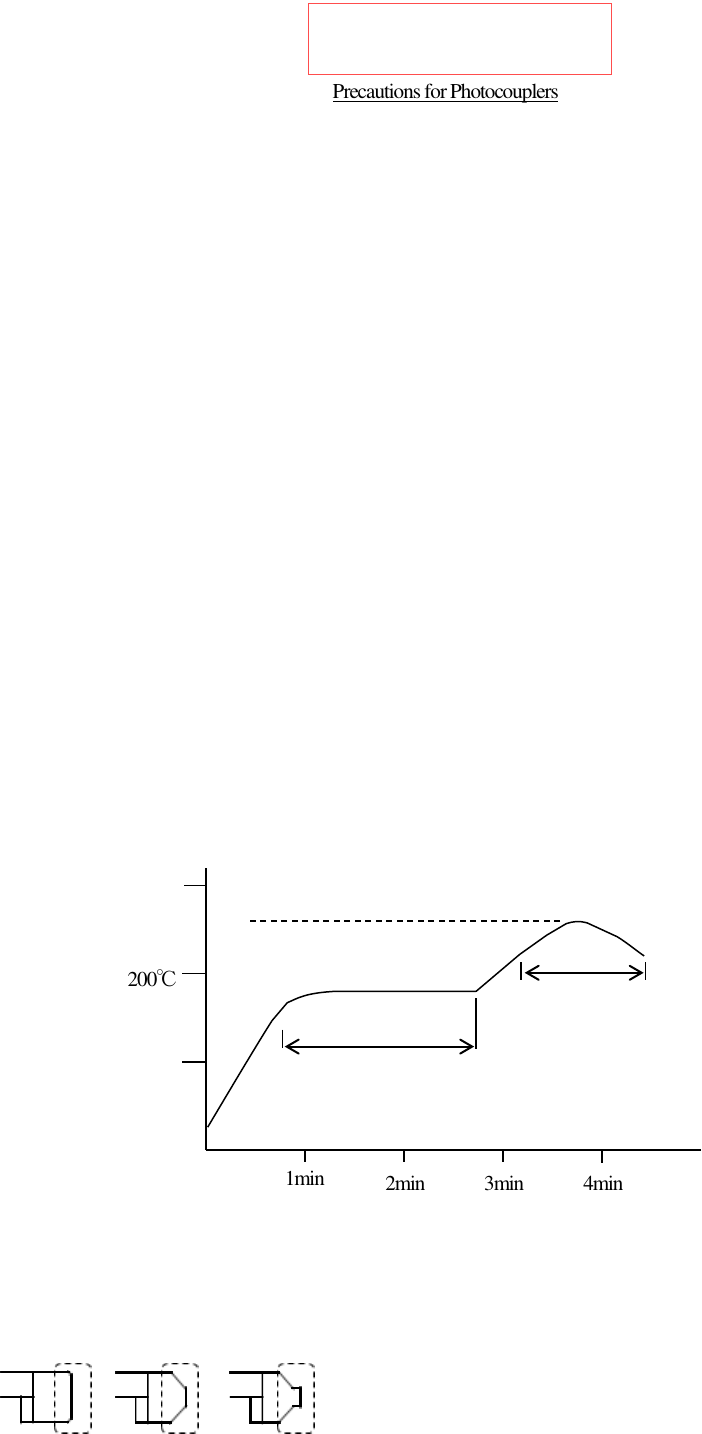

(2) If solder reflow :

It is recommended to be done at the temperature and the time within the temperature profile as shown

in the figure below. (2 times or less)

(3) In the case of hand soldering

What is done on the following condition is recommended.( 2 times or less)

Soldering iron temperature : 400℃ or less

Time : 3s or less

(4) The form of a lead tip part

There is production tolerance as shown in the following figure

(5) Other precautions

Depending on equipment and soldering conditions (temperature, Using solder etc.),

the effect to the device and the PCB is different.

Please confirm that there is no problem on the actual use conditions in advance.

REFERENCE

PC8171xNIP1B Specifications Datasheet by SHARP/Socle Technology

Products related to this Datasheet
