Title Reference Design Report for a 6 W Constant

Voltage (CV) Adapter Using LNK625PG

Specification 90 – 265 VAC Input; 5 V, 1.2 A Output

Application Low-Cost Charger or Adapter

Author Applications Engineering Department

Document

Number RDR-201

Date November 11, 2008

Revision 1.5

Summary and Features

• Eliminates optocoupler and all secondary side control circuitry

• EcoSmart® – Easily meets all existing and proposed international energy efficiency

standards – China (CECP) / EISA / Energy STAR / European Commission

• ON/OFF control provides constant efficiency event at very light loads

• No-load consumption <100 mW at 265 VAC

• Meets ENERGY STAR 2.0 active mode efficiency

• 76 % vs 70 % requirement at board

• 73 % vs 70 % requirement at end of 6 ft, 315 mΩ output cable

• Ultra-low leakage current: <5 µA at 265 VAC input (no Y capacitor required)

• Over-temperature protection – tight tolerance (±5%) with hysteretic recovery for safe

PCB temperatures under all conditions

• Auto-restart output short circuit and open-loop protection

• Easy compliance to EN550022 and CISPR-22 Class B EMI standards

• Green package: halogen free and RoHS compliant

PATENT INFORMATION

The products and applications illustrated herein (including transformer construction and circuits external to the products) may be covered

by one or more U.S. and foreign patents, or potentially by pending U.S. and foreign patent applications assigned to Power Integrations. A

complete list of Power Integrations' patents may be found at www.powerint.com. Power Integrations grants its customers a license under

certain patent rights as set forth at <http://www.powerint.com/ip.htm>.

.

RDR-201 6 W LinkSwitch-CV Adapter 11-Nov-08

Page 2 of 32

Power Integrations

Tel: +1 408 414 9200 Fax: +1 408 414 9201

www.powerint.com

Table of Contents

1 Introduction.................................................................................................................3

2 Power Supply Specification ........................................................................................4

3 Schematic...................................................................................................................5

4 Circuit Description ......................................................................................................6

4.1 Input and EMI Filtering ........................................................................................6

4.2 LinkSwitch-CV Device .........................................................................................6

4.3 Primary Circuit.....................................................................................................6

4.4 Output Rectification .............................................................................................7

4.5 Feedback Winding...............................................................................................7

5 PCB Layout ................................................................................................................8

6 Bill of Materials ...........................................................................................................9

7 Transformer Specification.........................................................................................10

7.1 Electrical Diagram .............................................................................................10

7.2 Electrical Specifications.....................................................................................10

7.3 Materials............................................................................................................10

7.4 Transformer Build Diagram ...............................................................................11

7.5 Transformer Construction..................................................................................11

8 Transformer Spreadsheets.......................................................................................12

9 Performance Data ....................................................................................................15

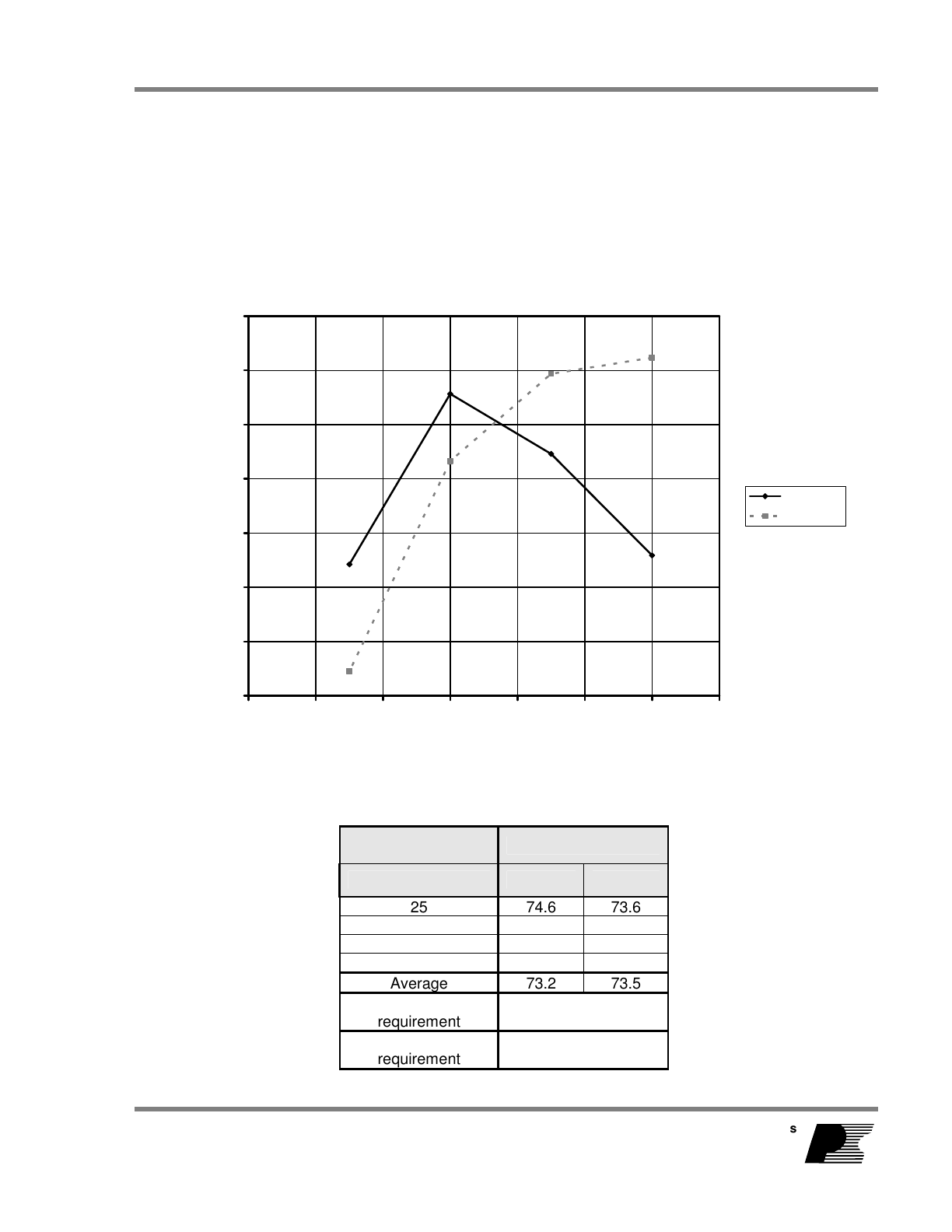

9.1 Active Mode Efficiency ......................................................................................15

9.2 Energy Efficiency Requirements .......................................................................16

9.2.1 USA Energy Independence and Security Act 2007....................................17

9.2.2 ENERGY STAR EPS Version 2.0 ..............................................................18

9.3 No-load Input Power..........................................................................................19

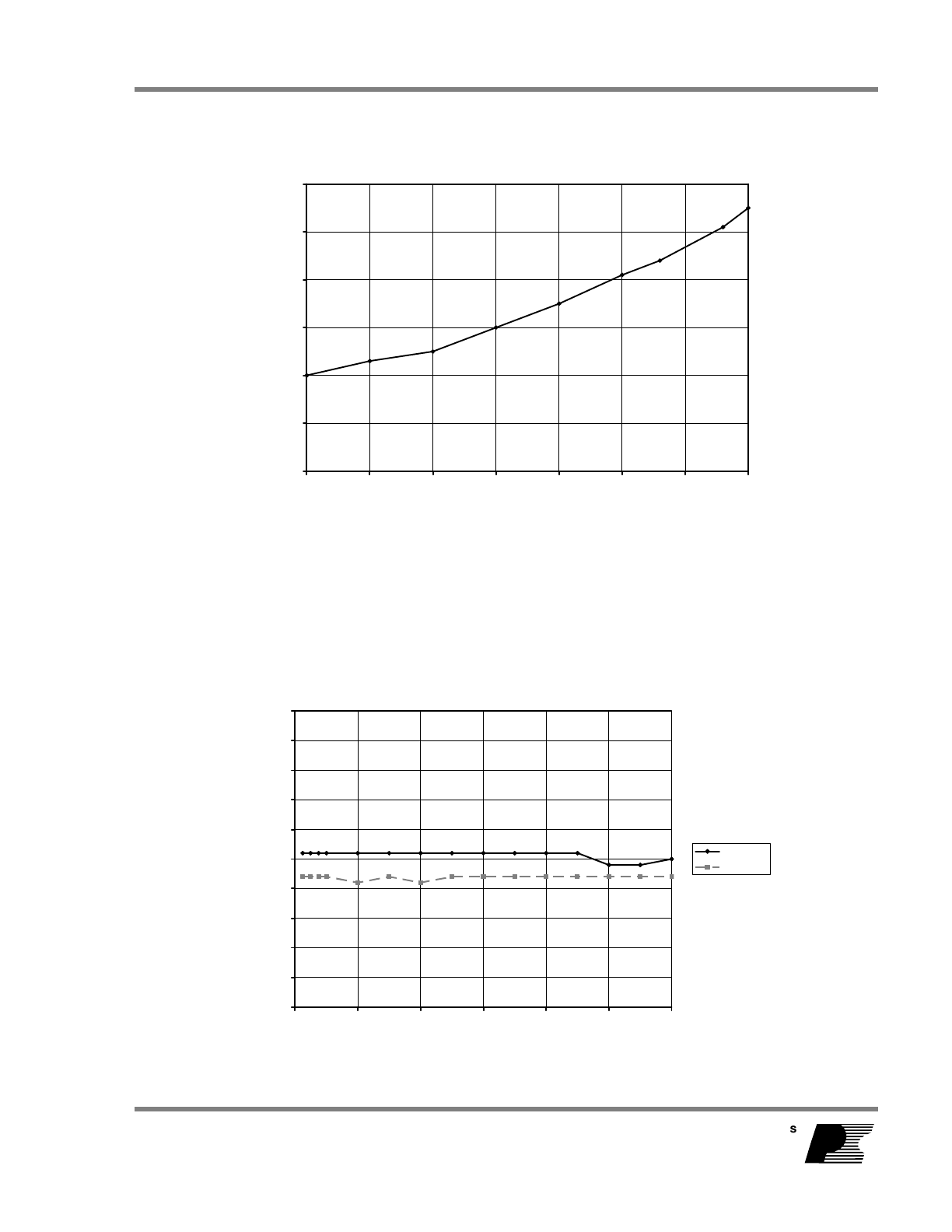

9.4 Regulation .........................................................................................................19

9.4.1 Load ...........................................................................................................19

9.4.2 Line ............................................................................................................20

10 Thermal Performance ...........................................................................................21

11 Waveforms............................................................................................................22

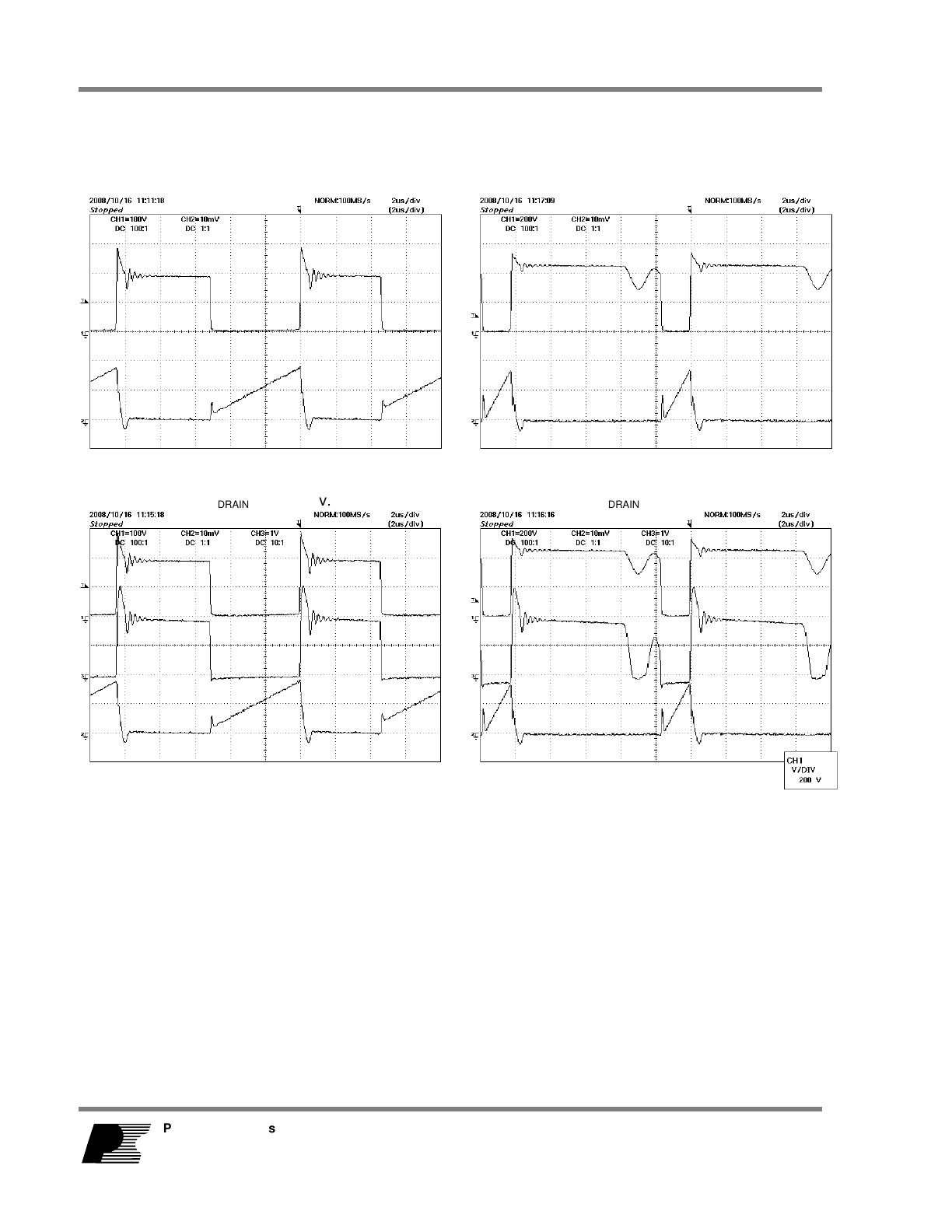

11.1 Drain Voltage and Current, Normal Operation...................................................22

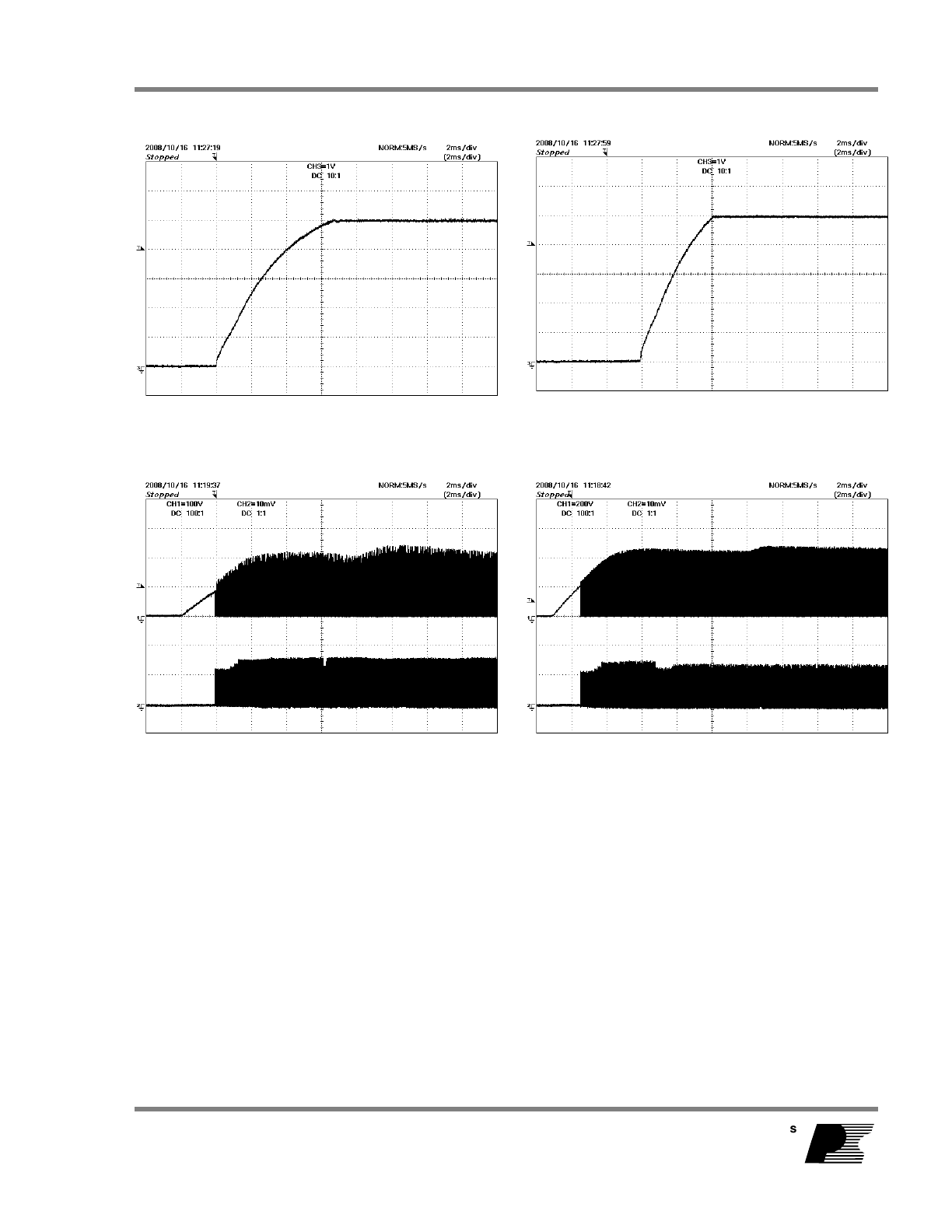

11.2 Output Voltage Start-up Profile..........................................................................23

11.3 Drain Voltage and Current Start-up Profile........................................................23

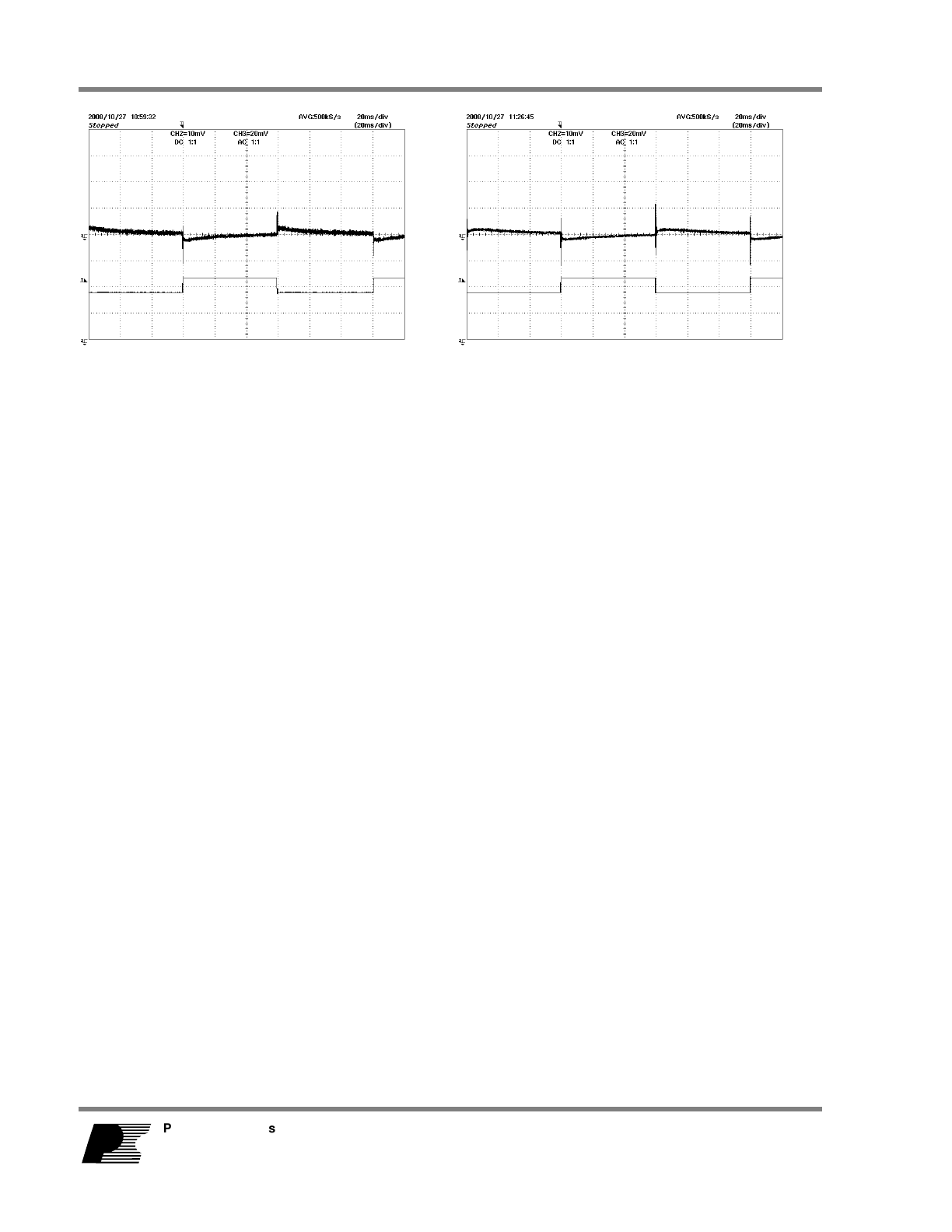

11.4 Load Transient Response (75% to 100% Load Step) .......................................23

11.5 Output Ripple Measurements............................................................................25

11.5.1 Ripple Measurement Technique ................................................................25

11.5.2 Measurement Results ................................................................................26

12 Line Surge.............................................................................................................27

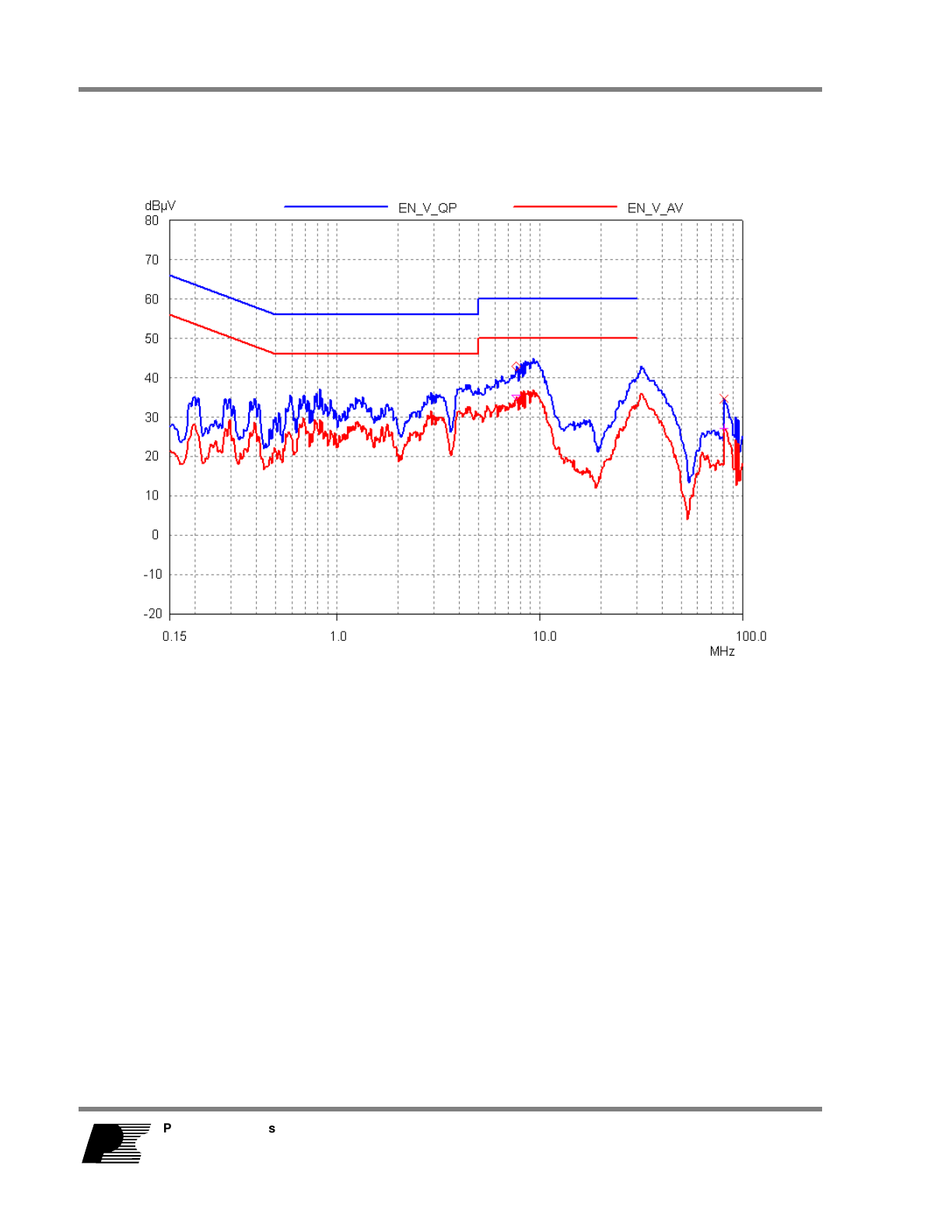

13 Conducted EMI .....................................................................................................28

14 Revision History ....................................................................................................29

Important Note:

Although this board is designed to satisfy safety isolation requirements, the engineering

prototype has not been agency approved. Therefore, all testing should be performed

using an isolation transformer to provide the AC input to the prototype board.

11-Nov-08 RDR-201 6 W LinkSwitch-CV Adapter

Page 3 of 32

Power Integrations

Tel: +1 408 414 9200 Fax: +1 408 414 9201

www.powerint.com

1 Introduction

This document is an engineering report describing a universal input, 5 V, 6 W output

Flyback power supply. This reference design is based on the LinkSwitch-CV family of

devices and utilizes the LNK625PG.

The document contains the power supply specification, schematic, bill of materials,

transformer documentation, printed circuit layout, and performance data.

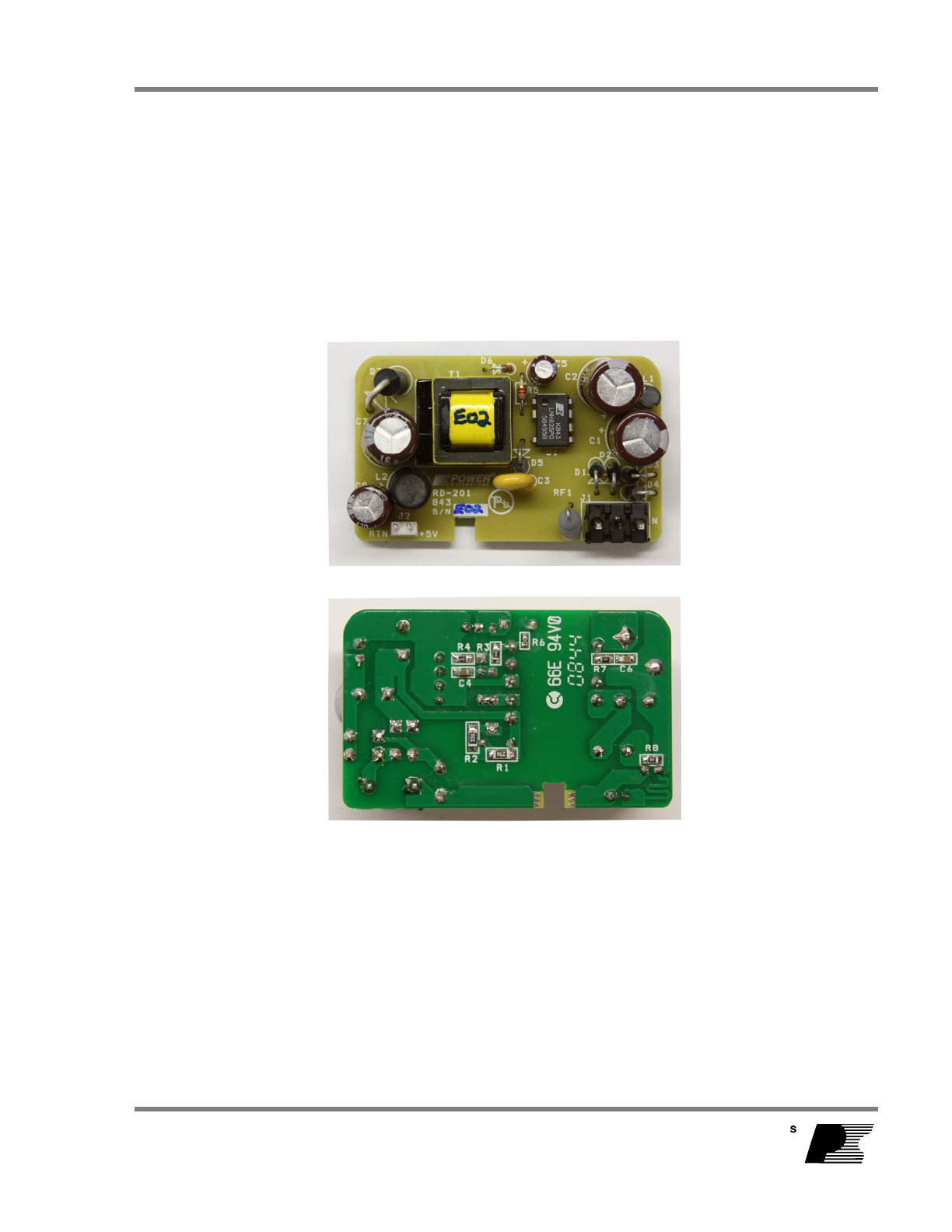

Figure 1 – Populated Circuit Board Photograph.

Pour cm 25 ab‘e ab‘e

RDR-201 6 W LinkSwitch-CV Adapter 11-Nov-08

Page 4 of 32

Power Integrations

Tel: +1 408 414 9200 Fax: +1 408 414 9201

www.powerint.com

2 Power Supply Specification

Description Symbol Min Typ Max Units Comment

Input

Voltage VIN 90 265 VAC 2 Wire – no P.E.

Frequency fLINE 47 50/60

64 Hz

No-load Input Power (230 VAC) 90 mW

Output

Output Voltage VOUT 4.75 5.0 5.25 V ± 5%

Output Ripple Voltage VRIPPLE 100 mV 20 MHz bandwidth

Output Current IOUT 0 1.2 A

Total Output Power

Continuous Output Power POUT 6 W

Efficiency Measured at P

OUT

25

o

C

Full Load η 76 % At board terminals

ηCBL 71 % At end of 6 ft, 315 mΩ output cable

Required average efficiency at

25, 50, 75 and 100 % of POUT 70 % Per ENERGY STAR V2.0

76 % At board

Measured average efficiency

ηES2.0

73 % At end of 6 ft, 315 mΩ output cable

Environmental

Conducted EMI Meets CISPR22B / EN55022B

Safety Designed to meet IEC950 / UL1950

Class II

Line Surge

Differential Mode (L1-L2)

Common mode (L1/L2-PE)

1

2

kV

1.2/50 µs surge, IEC 1000-4-5,

Series Impedance:

Differential Mode: 2 Ω

Common Mode: 12 Ω

Ambient Temperature TAMB 0 25 40 oC Free convection, sea level

L2 ‘ gas 9 333): 5 v, 12 A ' ' Ce 0 D1 D2 RI C3 1'379 ' "F RB 50v — —— 2S1NA007 IN4007 27o kn 1 E5 ’700007“; ’~ 3200 15 v 121:1 2 o NC 6 M c, 10 11 R2 05 2 W 33052 470 “F (FM—1 (:5 10v (:1 (:2 1 pl: 90 -265 6.8 _uF :: :: 6 a “F D5 50v VAC 400 v ADD v FH107 R5 9 LinkSwiIch-CV <’ r3="" 5.2="" kn="" u‘="" n="" 1’="" 28.7="" m="" 1/8="" w="" 04="" lnkbespg="" ‘3="" 1%="" 1n4007="" ep="" ,="" z:="" s="" 1="" c4="" .="" r4="" l1="" 1="" pf="" 4="" 42="" km="" 1="" mh="" t="" 25v="" 1%="" ann="" .="" 1="" 12152457102205="">

11-Nov-08 RDR-201 6 W LinkSwitch-CV Adapter

Page 5 of 32

Power Integrations

Tel: +1 408 414 9200 Fax: +1 408 414 9201

www.powerint.com

3 Schematic

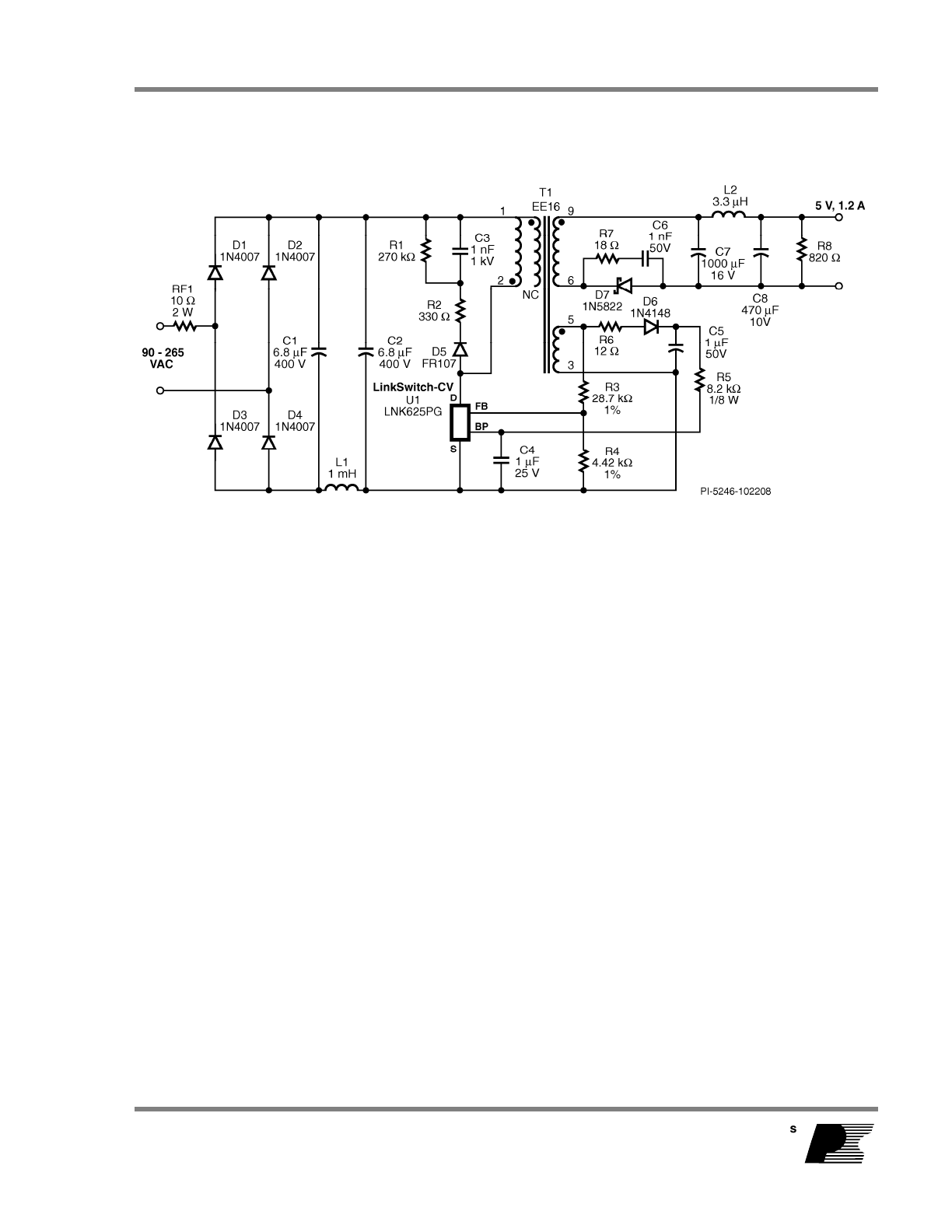

Figure 2 – Schematic

RDR-201 6 W LinkSwitch-CV Adapter 11-Nov-08

Page 6 of 32

Power Integrations

Tel: +1 408 414 9200 Fax: +1 408 414 9201

www.powerint.com

4 Circuit Description

The schematic in Figure 2 shows an adapter design using the LNK625PG that provides

very tight constant voltage (CV) performance. The circuit is designed to operate from

90 VAC to 265 VAC input, with an output voltage of 5 V providing a maximum load

current of 1.2 A. It consumes very little standby power and uses no Y-Capacitor to meet

stringent EMI requirements. The adapter also meets and exceeds both CEC and Energy

Star 2.0 regulations.

4.1 Input and EMI Filtering

Diodes D1 through D4 form a full wave rectifier. The rectified DC is then filtered by

capacitors C1 and C2. Inductor L1 forms a pi (π) filter with capacitors C1 and C2 which

helps to reduce differential EMI noise. This filtering, together with the integrated switching

frequency jitter provided in U1 and transformer E-Shield techniques, provide a generous

EMI margin without the need for a Y capacitor across the primary and secondary

windings of transformer T1.

4.2 LinkSwitch-CV Device

The LinkSwitch-CV family of devices has been developed to cost effectively replace all

existing solutions in low power adapter applications. It is optimized for constant voltage

(CV) adapter applications while using minimal external parts including the complete

elimination of the optocoupler and shunt regulator.

The LNK625PG monolithically integrates the 700 V power MOSFET switch and

controller, which consists of an oscillator, feedback (sense and logic) circuit, 6 V

regulator, BYPASS pin programming functions, over-temperature protection, frequency

jittering, current limit circuit and leading-edge blanking.

The LNK625PG also provides a sophisticated range of protection features including auto-

restart for control loop component open/short circuit faults and output short circuit

conditions. The use of a low auto-restart on time reduces the power delivered by more

than 95 % for output short circuits and control loop faults. Accurate hysteretic thermal

shutdown ensures safe average PCB temperatures under all conditions. Extended

creepage distance between high and low voltage pins prevent arcing and helps meet

safety requirements. LinkSwitch-CV also can be used without a bias winding as the IC is

completely self biased.

4.3 Primary Circuit

During U1’s on time current flows through the primary winding of transformer T1 and

stores energy in its magnetic field. During U1’s off time, the energy stored in the

transformer is transferred to the secondary side, delivering current to both the output

capacitors and the load.

11-Nov-08 RDR-201 6 W LinkSwitch-CV Adapter

Page 7 of 32

Power Integrations

Tel: +1 408 414 9200 Fax: +1 408 414 9201

www.powerint.com

The clamp circuit formed by resistors R1 and R2 along with blocking diode D5 and

capacitor C3 ensures that the drain node voltage is well below the 700 V rating of the

internal MOSFET of U1. The clamp circuit is also carefully designed to reduce and

dampen any oscillation present in the voltage spike caused by the transformer’s leakage

inductance.

4.4 Output Rectification

The secondary output is rectified by diode D7 which is placed in the return leg to help

reduce EMI and simplify the transformer construction. An RC snubber circuit composed

of resistor R7 and capacitor C6 is placed across the output diode to also reduce high

frequency EMI. A stable output voltage is maintained by capacitor C7.

Inductor L2 and capacitor C8 form an LC post filter which helps to attenuate switching

noise and reduces output ripple. Resistor R8 is a preload resistor whose value has been

empirically chosen to provide the best possible regulation at light loads without

significantly affecting no-load input power or efficiency.

4.5 Feedback Winding

LinkSwitch-CV eliminates the need for an optocoupler for tight output voltage regulation,

as good as ±5 %, through the use of a feedback winding. The feedback (FB) pin voltage,

which is derived from the voltage divider formed by resistors R3 and R4, is sampled

approximately 2.5 µs after U1’s internal MOSFET turns off. Based upon this information

the device regulates the output voltage.

The feedback winding was also designed with more turns than necessary so that it may

act as a bias winding. The winding provides bias current to U1 through the bypass pin

(BP) and reduces the input power consumption during light loads and no-load conditions.

Resistor R6 helps to dampen out any ringing present on the feedback winding and

ensures that the waveform at the FB pin at 2.5 us is free from any ringing. Capacitor C5

provides a stable bias voltage while resistor R5 is chosen to supply the necessary BP pin

current. Capacitor C4 is the BP pin capacitor and should be placed as close as possible

to the BP pin and source pins of the device.

6W Adaptor 1397.0 L2 Cg?” . . RD-ZOl @ n 2::- 2. I +5U I I it, RTN 2320.0 E? s

RDR-201 6 W LinkSwitch-CV Adapter 11-Nov-08

Page 8 of 32

Power Integrations

Tel: +1 408 414 9200 Fax: +1 408 414 9201

www.powerint.com

5 PCB Layout

Notable layout design points are:

1 A spark gap and associated slot in the PCB between the primary and secondary is

placed to protect the power supply from electro-static discharge (ESD).

• The preferential arcing point routes the energy from ESD discharges back

to the AC input, away from the transformer and primary circuitry.

• The trace connected to the AC input side of the spark gap is spaced away

from the rest of the board and its components to prevent arc discharges to

other sections of the circuit.

2 The drain trace length (pin 4 of U1) has been minimized to reduce EMI.

3 Clamp and output diode loop areas are minimized to reduce EMI.

4 A large copper area around the (electrically quiet) Source pins is used to provide

heatsinking. Provide sufficient copper area to keep the source pin temperature

below 90 ºC.

5 The AC input is located away from switching nodes to minimize noise coupling that

may bypass input filtering.

6 Place C4 (the bypass capacitor) as close as possible to the BYPASS pin on U1.

Figure 3 – Printed Circuit Layout, dimensions in mils (one thousandth of an inch).

11-Nov-08 RDR-201 6 W LinkSwitch-CV Adapter

Page 9 of 32

Power Integrations

Tel: +1 408 414 9200 Fax: +1 408 414 9201

www.powerint.com

6 Bill of Materials

Item Qty Ref

Des

Description Manufacturer Part

Number

Manufacturer

1 2 C1 C2 6.8 µF, 400 V, Electrolytic, (10 x 16) EKXG401ELL6R8MJ16S Nippon Chemi-Con

2 1 C3 1 nF, 1 kV, Disc Ceramic ECK-D3A102KBP Panasonic - ECG

3 1 C4 1 µF, 25 V, Ceramic, X7R, 0805 ECJ-2FB1E105K Panasonic

4 1 C5 1 µF, 50 V, Electrolytic, Gen. Purpose, (5 x 11) EKMG500ELL1R0ME11D Nippon Chemi-Con

5 1 C6 1 nF, 50 V, Ceramic, X7R, 0805 ECJ-2VB1H102K Panasonic

6 1 C7

1000 µF, 16 V, Electrolytic, Very Low ESR, 23 mΩ,

(10 x 20) EKZE160ELL102MJ20S Nippon Chemi-Con

7 1 C8

470 µF, 10 V, Electrolytic, Very Low ESR, 72 mΩ,

(8 x 11.5) EKZE100ELL471MHB5D Nippon Chemi-Con

8 4

D1 D2

D3 D4 1000 V, 1 A, Rectifier, DO-41 1N4007-E3/54 Vishay

9 1 D5 1000 V, 1 A, Fast Recovery Diode, DO-41 FR107-T-F Diodes Inc.

10 1 D6 75 V, 300 mA, Fast Switching, DO-35 1N4148 Vishay

11 1 D7 40 V, 3 A, Schottky, DO-41 1N5822 Vishay

12 1 J1 3 Position (1 x 3) header, 0.156 pitch, Vertical 26-48-1031 Molex

13 1 J2 2 Position (1 x 2) header, 0.1 pitch, Vertical 22-03-2021 Molex

14 1 L1 1 mH, 0.15 A, Ferrite Core SBCP-47HY102B Tokin

15 1 L2 3.3 µH, 5.5 A RL622-3R3K-RC JW Miller

16 1 R1 270 k, 5%, 1/4 W, Metal Film, 1206 ERJ-8GEYJ274V Panasonic

17 1 R2 330 Ω, 5%, 1/4 W, Metal Film, 1206 ERJ-8GEYJ331V Panasonic

18 1 R3 28.7 kΩ, 1%, 1/8 W, Metal Film, 0805 ERJ-6ENF2872V Panasonic

19 1 R4 4.42 kΩ, 1%, 1/8 W, Metal Film, 0805 ERJ-6ENF4421V Panasonic

20 1 R5 8.2 kΩ, 5%, 1/8 W, Carbon Film CFR-12JB-8K2 Yageo

21 1 R6 12 Ω, 5%, 1/10 W, Metal Film, 0603 ERJ-3GEYJ120V Panasonic

22 1 R7 18 Ω, 5%, 1/8 W, Metal Film, 0805 ERJ-6GEYJ180V Panasonic

23 1 R8 820 Ω, 5%, 1/8 W, Metal Film, 0805 ERJ-6GEYJ821V Panasonic

24 1 RF1 10 Ω, 2 W, Fusible/Flame Proof Wire Wound CRF253-4 10R Vitrohm

25 1 T1 Bobbin, EE16, Horizontal, 10 pins

PM-9820

Santronics

Wurth Electronics

Ice Components

Precision Electronics

Ho Jinn Plastic Elect. Co.

SNX R1494

750811016

TP08152

019-6361-00R

26 1 U1 LinkSwitch-II, LNK625PG, CV, DIP-8C LNK625PG Power Integrations

woz: Primary 34 AWG x 2,115T WDB: Shie‘d 36 AWG X 3‘ 1ST 1 k '2 9 I WD4: Secondary 27 TIW X 2, 7T 0 2 » “y 6 1 » x 5 C O WD1: Feedback 34 AWG X 2V 19T NC I: 7 3

RDR-201 6 W LinkSwitch-CV Adapter 11-Nov-08

Page 10 of 32

Power Integrations

Tel: +1 408 414 9200 Fax: +1 408 414 9201

www.powerint.com

7 Transformer Specification

7.1 Electrical Diagram

Figure 4 – Transformer Electrical Diagram.

7.2 Electrical Specifications

Electrical Strength 1 second, 60 Hz, from Pins1-2 to Pins 6-9 3000 VAC

Primary Inductance Pins 1-2, all other windings open 1.67 mH ±10%

Resonant Frequency Pins 1-2, all other windings open 500 kHz (Min.)

Primary Leakage Inductance Pins 1-2, with Pins 6,9,3 and 5 shorted. 100 µH (Max.)

7.3 Materials

Item Description

[1] Core: EE16, NC-2H or equivalent, gapped for 126 nH/T2

[2] Bobbin: EE16, Horizontal, 10 pins, (5/5)

[3] Magnet wire: #34 AWG, double coated.

[4] Magnet wire: #36 AWG, double coated.

[5] Triple Insulated wire: #27 TIW

[6] Tape: 3M 1298 Polyester Film, 2 mils thick, 8.6 mm wide.

[7] Varnish

a Layers a 5 mm Tap; zu,.,.u......n.,e OOOOOOOOOOOOW—E WM: Semndew‘ 27 W x 2‘ 7 r NC -©OOOOOOOOO... WD3:SNeId,36AWGX3,16T QOOOOOOOOOOOO x GOOOOOOOOOOOQV woz; anary, 34 AWGXW‘ 115T 4000000000006) ‘-—39T 1.00000000000 WD1: Feedback 34AWGX2.19T EIE ,y 1 Layer 3.5 mm Tan: /\ ? A Layer: : 6 mm up; %

11-Nov-08 RDR-201 6 W LinkSwitch-CV Adapter

Page 11 of 32

Power Integrations

Tel: +1 408 414 9200 Fax: +1 408 414 9201

www.powerint.com

7.4 Transformer Build Diagram

Figure 5 – Transformer Build Diagram.

7.5 Transformer Construction

Bobbin

Preparation

Pull pins 7 and 10. Orient the bobbin with primary pins on the left hand side. Winding

direction is clockwise.

Winding 1:

Feedback

Start on pin 5 and wind 19 turns of bifilar item [3] from left to right terminating on pin 3.

Insulation Apply 4 layers of tape item [6].

Winding 2:

Primary Winding

Start on pin 2 and wind 39 turns of item [3], with tight tension, from left to right filling one

layer. Apply one layer of tape item [6]. Continue winding 38 turns of item [3] from right to

left and apply one layer of tape item [6]. Wind the remaining 38 turns of item [3] from left

to right and terminate the winding on pin 1.

Insulation Apply one layer of tape item [6].

Winding 3:

Shield

Start on any temporary secondary pin, leaving extra wire, and wind 16 turns of trifilar

item [4] from right to left filling one layer. Secure the winding temporarily with tape and

cut the finish end of the winding. Move the starting end of the winding to pin 1.

Insulation Wrap two complete layers of tape over any leads of the previous winding.

Winding 4:

Secondary

Start on pin 9 and wind 7 turns of item [6] from right to left terminating on pin 6.

Insulation Apply 2 layers of tape item [6]

Assembly Assemble core halves and tape together after properly gapping center leg of core.

Finish Dip Varnish

RDR-201 6 W LinkSwitch-CV Adapter 11-Nov-08

Page 12 of 32

Power Integrations

Tel: +1 408 414 9200 Fax: +1 408 414 9201

www.powerint.com

8 Transformer Spreadsheets

ACDC_LNK-

CV_102208; Rev.1.1;

Copyright Power

Integrations 2008 INPUT INFO OUTPUT UNIT

ACDC_LNK-CV_102208_Rev1-1.xls;

LinkSwitch-CV Continuous/Discontinuous

Flyback Transformer Design Spreadsheet

ENTER APPLICATION VARIABLES RDK-201: 5 V, 6 W Adapter Design

VACMIN 90 Volts Minimum AC Input Voltage

VACMAX 265 Volts Maximum AC Input Voltage

fL 50 Hertz AC Mains Frequency

VO 5.00 Volts Output Voltage

PO 6.00 Watts Output Power

n 0.72 Efficiency Estimate

Z 0.5 Loss Allocation Factor

tC 3 mSeconds Bridge Rectifier Conduction Time Estimate

CIN 13.60 uFarads Input Filter Capacitor

ENTER LinkSwitch-CV VARIABLES

LinkSwitch-CV LNK625P LNK625P Chosen LinkSwitch-CV device

ILIMITMIN 0.307 Amps LinkSwitch-CV Minimum Current Limit

ILIMITMAX 0.353 Amps LinkSwitch-CV Maximum Current Limit

fS 100000 Hertz LinkSwitch-CV Switching Frequency

I2FMIN 9801 A^2Hz LinkSwitch-CV Min I2F (power Coefficient)

I2FMAX 12741 A^2Hz LinkSwitch-CV Max I2F (power Coefficient)

VOR 90 Volts Reflected Output Voltage

VDS 10 Volts

LinkSwitch-CV on-state Drain to Source

Voltage

VD 0.5 Volts Output Winding Diode Forward Voltage Drop

DCON 5.11 us Output Diode conduction time

KP_TRANSIENT 0.82

Worst case ripple to peak current ratio.

Maintain KP_TRANSIENT below 0.25

ENTER TRANSFORMER CORE/CONSTRUCTION VARIABLES

Core Type Auto EE16 Transformer Core size

Core EE16 P/N: PC40EE16-Z

Bobbin

EE16_

BOBBI

N P/N: BE-16-118CPH

AE 0.192 cm^2 Core Effective Cross Sectional Area

LE 3.5 cm Core Effective Path Length

AL 1140 nH/T^2 Ungapped Core Effective Inductance

BW 8.5 mm Bobbin Physical Winding Width

M 0.00 mm

Safety Margin Width (Half the Primary to

Secondary Creepage Distance)

L 3 Number of Primary Layers

11-Nov-08 RDR-201 6 W LinkSwitch-CV Adapter

Page 13 of 32

Power Integrations

Tel: +1 408 414 9200 Fax: +1 408 414 9201

www.powerint.com

NS 7 Number of Secondary Turns

DC INPUT VOLTAGE PARAMETERS

VMIN 87 Volts Minimum DC Input Voltage

VMAX 375 Volts Maximum DC Input Voltage

FEEDBACK VARIABLES

NFB 19.00 19.00 Feedback winding number of turns

VFLY 14.93 Volts

Voltage on the Feedback winding when

LinkSwitch-CV turns off

RUPPER 28.70 k-ohms Upper resistor of feedback network

RLOWER 4.53 k-ohms Lower resistor of feedback network

Fine Tuning Section

Measured Output

Voltage 5.10 5.10 k-ohms

Actual (Measured) Voltage at the output of

power supply

RLOWER_FINE 4.42 k-ohms

Adjusted (Fine tuned) value of lower resistor

(RLOWER). Do not change value of RUPPER

Bias Winding Parameters

Add Bias winding YES NO

Bias winding is not necessary. The feedback

winding itself can be used as a bias winding

VB N/A Volts Bias Winding Voltage

NB N/A

Number of Bias winding turns. Bias winding is

assumed to be AC stacked on top of the

Feedback winding

CURRENT WAVEFORM SHAPE PARAMETERS

DMAX 0.54 Maximum Duty Cycle

IAVG 0.10 Amps Average Primary Current

IP 0.31 Amps Minimum Peak Primary Current

IR 0.26 Amps Primary Ripple Current

IRMS 0.14 Amps Primary RMS Current

TRANSFORMER PRIMARY DESIGN PARAMETERS

LPMIN 1499 uHenries Minimum Primary Inductance

LP_TYP 1649 uHenries Typical (Nominal) Primary Inductance

LP_TOL 10 Tolerance of Primary inductance

NP 115 Primary Winding Number of Turns

ALG 126 nH/T^2 Gapped Core Effective Inductance

BM 2474 Gauss

Maximum Flux Density, (BM<2500) Calculated

at typical current limit and typical primary

inductance

RDR-201 6 W LinkSwitch-CV Adapter 11-Nov-08

Page 14 of 32

Power Integrations

Tel: +1 408 414 9200 Fax: +1 408 414 9201

www.powerint.com

BP 2887 Gauss

Peak Flux Density, (BP<3100) Calculated at

maximum current limit and maximum primary

inductance

BAC 908 Gauss

AC Flux Density for Core Loss Curves (0.5 X

Peak to Peak)

ur 1654 Relative Permeability of Ungapped Core

LG 0.19 mm Gap Length (Lg > 0.1 mm)

BWE 25.5 mm Effective Bobbin Width

OD 0.22 mm

Maximum Primary Wire Diameter including

insulation

INS 0.04 mm

Estimated Total Insulation Thickness (= 2 * film

thickness)

DIA 0.18 mm Bare conductor diameter

AWG 34 AWG

Primary Wire Gauge (Rounded to next smaller

standard AWG value)

CM 40 Cmils Bare conductor effective area in circular mils

CMA 285 Cmils/Amp

Primary Winding Current Capacity (200 < CMA

< 500)

TRANSFORMER SECONDARY DESIGN PARAMETERS

Lumped parameters

ISP 5.02 Amps Peak Secondary Current

ISRMS 2.14 Amps Secondary RMS Current

IO 1.20 Amps Power Supply Output Current

IRIPPLE 1.77 Amps Output Capacitor RMS Ripple Current

CMS 428 Cmils

Secondary Bare Conductor minimum circular

mils

AWGS 23 AWG

Secondary Wire Gauge (Rounded up to next

larger standard AWG value)

DIAS 0.58 mm Secondary Minimum Bare Conductor Diameter

ODS 1.21 mm

Secondary Maximum Outside Diameter for

Triple Insulated Wire

INSS 0.32 mm Maximum Secondary Insulation Wall Thickness

VOLTAGE STRESS PARAMETERS

VDRAIN 584 Volts

Maximum Drain Voltage Estimate (Includes

Effect of Leakage Inductance)

PIVB N/A Volts Bias Diode Maximum Peak Inverse Voltage

PIVS 28 Volts

Output Rectifier Maximum Peak Inverse

Voltage

,. Avera 9 re u‘wrement re u‘wrement

11-Nov-08 RDR-201 6 W LinkSwitch-CV Adapter

Page 15 of 32

Power Integrations

Tel: +1 408 414 9200 Fax: +1 408 414 9201

www.powerint.com

9 Performance Data

All measurements performed at room temperature, 60 Hz input frequency unless

otherwise stated.

9.1 Active Mode Efficiency

Efficiency was measured at the end of a AWG24 cable 6 ft in length (cable resistance =

315 mΩ)

75.0%

75.5%

76.0%

76.5%

77.0%

77.5%

78.0%

78.5%

0 200 400 600 800 1000 1200 1400

Output Current (mA)

Efficiency (%)

115 VAC

230 VAC

Figure 6 – Efficiency vs. Load, Room Temperature, 60 Hz.

Percent of Full

Load Efficiency (%)

115 VAC 230 VAC

25 74.6 73.6

50 74.6 74.3

75 72.9 73.6

100 70.8 72.5

Average 73.2 73.5

US EISA (2007)

requirement 66.1

ENERGY STAR 2.0

requirement 69.5

Table 1 – Efficiency Table.

http://www.enerqutar.qov/ia/panners/prod development/downloads/power supplies/EP SugglyEffic TestMethod 0804.9df http://www.powerim.com/qreenroom/requlationshtm

RDR-201 6 W LinkSwitch-CV Adapter 11-Nov-08

Page 16 of 32

Power Integrations

Tel: +1 408 414 9200 Fax: +1 408 414 9201

www.powerint.com

9.2 Energy Efficiency Requirements

The external power supply requirements below all require meeting active mode efficiency

and no-load input power limits. Minimum active mode efficiency is defined as the

average efficiency of 25, 50, 75 and 100% of output current (based on the nameplate

output current rating).

For adapters that are single input voltage only then the measurement is made at the

rated single nominal input voltage (115 VAC or 230 VAC), for universal input adapters the

measurement is made at both nominal input voltages (115 VAC and 230 VAC).

To meet the standard the measured average efficiency (or efficiencies for universal input

supplies) must be greater than or equal to the efficiency specified by the standard.

The test method can be found here:

http://www.energystar.gov/ia/partners/prod_development/downloads/power_supplies/EP

SupplyEffic_TestMethod_0804.pdf

For the latest up to date information please visit the PI Green Room:

http://www.powerint.com/greenroom/regulations.htm

21Wtos51W Po 0.09 X In Po + 0.5

11-Nov-08 RDR-201 6 W LinkSwitch-CV Adapter

Page 17 of 32

Power Integrations

Tel: +1 408 414 9200 Fax: +1 408 414 9201

www.powerint.com

9.2.1 USA Energy Independence and Security Act 2007

This legislation mandates all single output single output adapters, including those

provided with products, manufactured on or after July 1st, 2008 must meet minimum

active mode efficiency and no load input power limits.

Active Mode Efficiency Standard Models

Nameplate Output (PO) Minimum Efficiency in Active Mode of Operation

< 1 W 0.5 × PO

≥ 1 W to ≤ 51 W 0.09 × ln (PO) + 0.5

> 51 W 0.85

ln = natural logarithm

No-load Energy Consumption

Nameplate Output (PO) Maximum Power for No-load

AC-DC EPS

All ≤ 0.5 W

This requirement supersedes the legislation from individual US States (for example CEC

in California).

Po >1 W [0 S 49 W 0.0626 X In (Pg) + 0.622 S1 W 0.497 X Pg + 0.057 >1 WtoS49W 0.075xln (P0) +0551 50.3 W 250WIUS25OW $0.5W

RDR-201 6 W LinkSwitch-CV Adapter 11-Nov-08

Page 18 of 32

Power Integrations

Tel: +1 408 414 9200 Fax: +1 408 414 9201

www.powerint.com

9.2.2 ENERGY STAR EPS Version 2.0

This specification takes effect on November 1st, 2008.

Active Mode Efficiency Standard Models

Nameplate Output (PO) Minimum Efficiency in Active Mode of Operation

≤ 1 W 0.48 × PO + 0.14

> 1 W to ≤ 49 W 0.0626 × ln (PO) + 0.622

> 49 W 0.87

ln = natural logarithm

Active Mode Efficiency Low Voltage Models (VO<6 V and IO ≥ 550 mA)

Nameplate Output (PO) Minimum Efficiency in Active Mode of Operation

≤ 1 W 0.497 × PO + 0.067

> 1 W to ≤ 49 W 0.075 × ln (PO) + 0.561

> 49 W 0.86

ln = natural logarithm

No-load Energy Consumption (both models)

Nameplate Output (PO) Maximum Power for No-load

AC-DC EPS

0 to < 50 W ≤ 0.3 W

≥ 50 W to ≤ 250 W ≤ 0.5 W

11-Nov-08 RDR-201 6 W LinkSwitch-CV Adapter

Page 19 of 32

Power Integrations

Tel: +1 408 414 9200 Fax: +1 408 414 9201

www.powerint.com

9.3 No-load Input Power

0.040

0.050

0.060

0.070

0.080

0.090

0.100

90 115 140 165 190 215 240 265

Input Voltage (VAC)

Input Power (W)

Figure 7 – Zero Load Input Power vs. Input Line Voltage, Room Temperature, 60 Hz.

9.4 Regulation

9.4.1 Load

4.75

4.80

4.85

4.90

4.95

5.00

5.05

5.10

5.15

5.20

5.25

0 200 400 600 800 1000 1200

Output Current (mA)

Output Voltage (VDC)

90 VAC

265 VAC

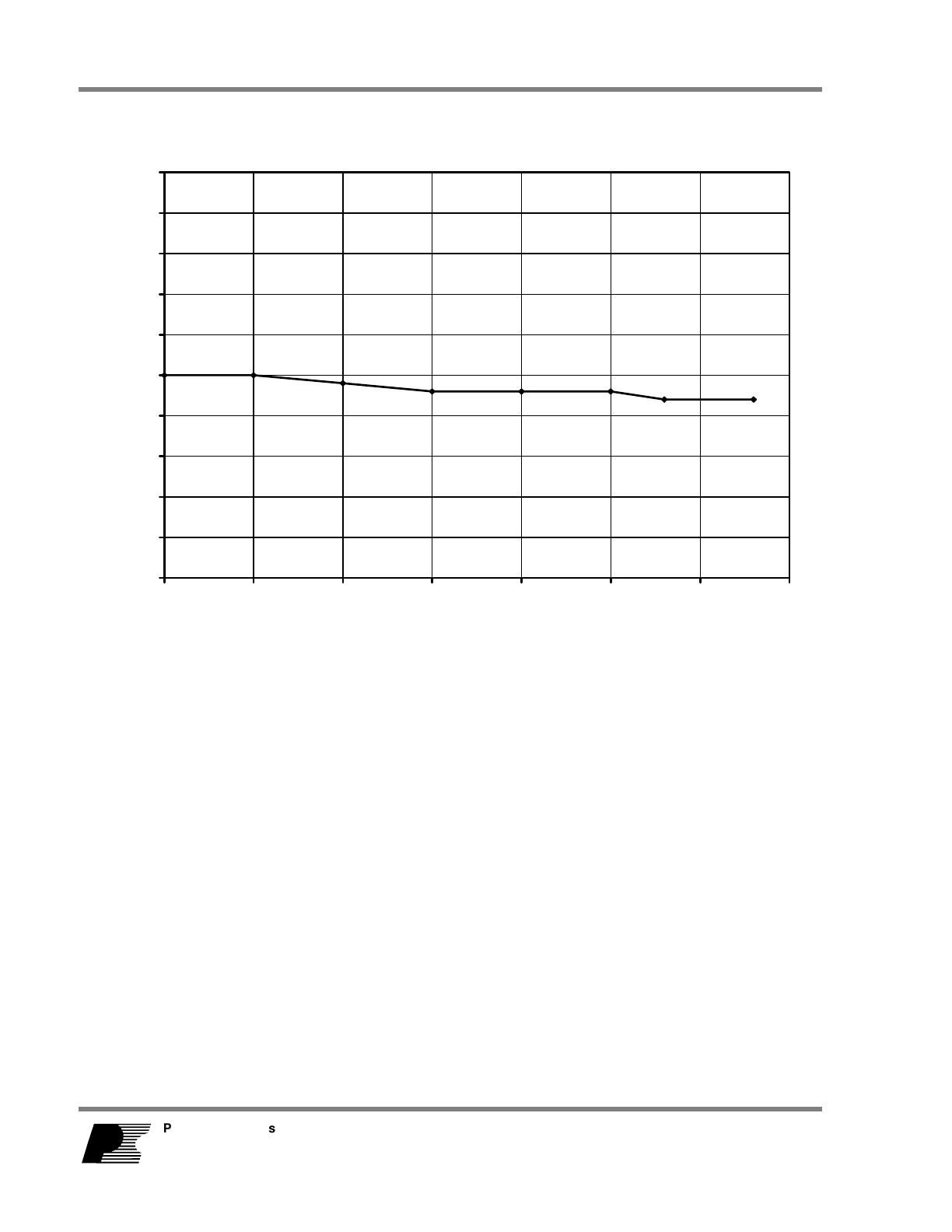

Figure 8 – Load Regulation, Room Temperature.

RDR-201 6 W LinkSwitch-CV Adapter 11-Nov-08

Page 20 of 32

Power Integrations

Tel: +1 408 414 9200 Fax: +1 408 414 9201

www.powerint.com

9.4.2 Line

4.75

4.80

4.85

4.90

4.95

5.00

5.05

5.10

5.15

5.20

5.25

90 115 140 165 190 215 240 265

Line Voltage (VAC)

Output Voltage (VDC)

Figure 9 – Line Regulation, Room Temperature, Full Load.

11-Nov-08 RDR-201 6 W LinkSwitch-CV Adapter

Page 21 of 32

Power Integrations

Tel: +1 408 414 9200 Fax: +1 408 414 9201

www.powerint.com

10 Thermal Performance

The temperature of key components was measured to evaluate the thermal performance

of the power supply. The power supply’s thermal performance was measured at both low

line (90 VAC) and high line (265 VAC) with line frequency of 50 Hz. The power supply

was loaded to full load (1200 mA).

The power supply was placed inside a cardboard box, to minimize convective cooling,

which was then placed in a thermal chamber. The ambient temperature within the box

was monitored by a T-type thermocouple placed above the power supply. The

temperature of the Power Integrations device, U1, was monitored by soldering a T-type

thermocouple to one of the middle source pins, close to the case. The temperature of the

transformer windings (T1) was monitored by gluing a T-type thermocouple, using

thermally conductive epoxy, to the outermost layer of tape on the bottom of the

transformer (closest to the PCB). Lastly the output diode’s (D7) temperature was

monitored by soldering a T-type thermocouple to the anode, near the case.

Item Temperature (°

°°

°C)

90 VAC / 50

Hz

265 VAC / 50

Hz

Ambient 40 40

Source Pin of PI Device (U1) 87 69

Transformer Windings (T1) 70 67

Anode of Output Diode (D7) 76 76

Table 2 – Thermal Performance of the Power Supply.

minim/I: “-n- Maximum/g mm minim/I: “-179; Maximum]; mm m (an/mu) m 1 (flu/4w) mum cnz-umv mI-zmv cnz-umv no mm In; 1-1 no mm In; 1-1 DRAIN V- mmnm ms“ "mums“ 2mm "mums“ mm m (2mm) ’4 (ms/aw) c I=1nw w 1m .1 an wmv 2m v

RDR-201 6 W LinkSwitch-CV Adapter 11-Nov-08

Page 22 of 32

Power Integrations

Tel: +1 408 414 9200 Fax: +1 408 414 9201

www.powerint.com

11 Waveforms

11.1 Drain Voltage and Current, Normal Operation

Figure 10 – 90 VAC, Full Load.

Upper: VDRAIN, 100 V / div, 2 µs / div.

Lower: IDRAIN, 0.2 A / div.

Figure 11 – 265 VAC, Full Load.

Upper: VDRAIN, 200 V, 2 µs / div.

Lower: IDRAIN, 0.2 A / div.

Figure 12 – 90 VAC, Full Load.

Upper: VDRAIN, 100 V, 2 µs / div.

Middle: VFB, 1 V / div.

Lower: IDRAIN, 0.2 A / div.

Figure 13 – 265 VAC, Full Load.

Upper: VDRAIN, 200 V, 2 µs / div.

Middle: VFB, 1 V / div.

Lower: IDRAIN, 0.2 A / div.

v x: v x: manna/I: mm mammal; mm “""W‘ “1”" “WM/5 mm m :4 mum) m :4 mum; cu w cu w m In W 2: manna/I: “-1937 mammal; 2mm manna/I: mm mammal; mm m :4 mum; m M mum) mun-w mum mI-zmv mum no mm In; 1-1 no mm In; 1-1 x:

11-Nov-08 RDR-201 6 W LinkSwitch-CV Adapter

Page 23 of 32

Power Integrations

Tel: +1 408 414 9200 Fax: +1 408 414 9201

www.powerint.com

11.2 Output Voltage Start-up Profile

Figure 14 – Start-up Profile, 90 VAC, Full Load

1 V, 2 ms / div.

Figure 15 – Start-up Profile, 265 VAC, Full Load

1 V, 2 ms / div.

11.3 Drain Voltage and Current Start-up Profile

Figure 16 – 90 VAC Input and Full Load.

Upper: VDRAIN, 100 V, 2 ms / div.

Lower: IDRAIN, 0.2 A / div.

Figure 17 – 265 VAC Input and Full Load.

Upper: VDRAIN, 200 V, 2 ms / div.

Lower: IDRAIN, 0.2 A / div.

11.4 Load Transient Response (75% to 100% Load Step)

In the figures shown below, signal averaging was used to better enable viewing the load

transient response. The oscilloscope was triggered using the load current step as a

trigger source. Since the output switching and line frequency occur essentially at random

with respect to the load transient, contributions to the output ripple from these sources

will average out, leaving the contribution only from the load step response.

mum Imaz Magma/5 mun/m mum “in; Magma/5 mun/m sham u Wm sham Wm um." cmnm cmnm w 1:! a: ‘ ‘ a: ‘ ‘

RDR-201 6 W LinkSwitch-CV Adapter 11-Nov-08

Page 24 of 32

Power Integrations

Tel: +1 408 414 9200 Fax: +1 408 414 9201

www.powerint.com

Figure 18 – Transient Response, 90 VAC

75-100-75% Load Step.

Upper: Output Voltage

10 mV, 10 ms / div.

Bottom: Load Current, 0.5 A / div.

Figure 19 – Transient Response, 265 VAC

75-100-75% Load Step.

Upper: Load Current, 1 A/ div.

Bottom: Output Voltage

50 mV, 2 ms / div.

,gw \ www.mobemastemwm

11-Nov-08 RDR-201 6 W LinkSwitch-CV Adapter

Page 25 of 32

Power Integrations

Tel: +1 408 414 9200 Fax: +1 408 414 9201

www.powerint.com

11.5 Output Ripple Measurements

11.5.1 Ripple Measurement Technique

For DC output ripple measurements, use a modified oscilloscope test probe to reduce

spurious signals. Details of the probe modification are provided in figures below.

Tie two capacitors in parallel across the probe tip of the 4987BA probe adapter. Use a

0.1 µF/50 V ceramic capacitor and a 1.0 µF/50 V aluminum-electrolytic capacitor. The

aluminum-electrolytic capacitor is polarized, so always maintain proper polarity across

DC outputs.

Figure 20 – Oscilloscope Probe Prepared for Ripple Measurement. (End Cap and Ground Lead Removed)

Figure 21 – Oscilloscope Probe with Probe Master (www.probemaster.com) 4987A BNC Adapter.

(Modified with wires for ripple measurement, and two parallel decoupling capacitors added)

Probe Ground

Probe Tip

m/InnA “915‘ :— mml, arm/m mlm/nusul :— mml, arm/m V sham [Emu/m] V sham [Emu/m] ~2n Hie-3: M 2|.nnmv Hie-3: M 5mm

RDR-201 6 W LinkSwitch-CV Adapter 11-Nov-08

Page 26 of 32

Power Integrations

Tel: +1 408 414 9200 Fax: +1 408 414 9201

www.powerint.com

11.5.2 Measurement Results

Figure 22 – Ripple, 90 VAC, Full Load.

50 ms, 20 mV / div.

Figure 23 – 265 VAC, Full Load.

50 ms, 20 mV / div.

11-Nov-08 RDR-201 6 W LinkSwitch-CV Adapter

Page 27 of 32

Power Integrations

Tel: +1 408 414 9200 Fax: +1 408 414 9201

www.powerint.com

12 Line Surge

Differential input line 1.2/50 µs surge testing was completed on a single test unit to

IEC61000-4-5. Input voltage was set at 230 VAC / 60 Hz. Output was loaded at full load

and operation was verified following each surge event.

Surge

Level (V)

Input

Voltage

(VAC)

Injection

Location

Injection

Phase (°)

Test Result

(10 Strikes

Pass/Fail)

+500 230 L to N (2 Ω) 90 Pass

+1000 230 L to PE (12 Ω) 90 Pass

+1000 230 L to N (2 Ω) 90 Pass

+2000 230 L to PE (12 Ω) 90 Pass

Unit passes under all test conditions.

015 10 100 1000 MHZ

RDR-201 6 W LinkSwitch-CV Adapter 11-Nov-08

Page 28 of 32

Power Integrations

Tel: +1 408 414 9200 Fax: +1 408 414 9201

www.powerint.com

13 Conducted EMI

Figure 24 – Worst Case Conducted EMI, Maximum Steady State Load, 230 VAC, 60 Hz, and EN55022 B

Limits, Artificial Hand.

11-Nov-08 RDR-201 6 W LinkSwitch-CV Adapter

Page 29 of 32

Power Integrations

Tel: +1 408 414 9200 Fax: +1 408 414 9201

www.powerint.com

14 Revision History

Date Author Revision Description & changes Reviewed

11-Nov-08 TS 1.5 Initial Release SGK, PV

RDR-201 6 W LinkSwitch-CV Adapter 11-Nov-08

Page 30 of 32

Power Integrations

Tel: +1 408 414 9200 Fax: +1 408 414 9201

www.powerint.com

Notes

11-Nov-08 RDR-201 6 W LinkSwitch-CV Adapter

Page 31 of 32

Power Integrations

Tel: +1 408 414 9200 Fax: +1 408 414 9201

www.powerint.com

Notes

Kareasa/esﬁpo wen'nLcam

RDR-201 6 W LinkSwitch-CV Adapter 11-Nov-08

Page 32 of 32

Power Integrations

Tel: +1 408 414 9200 Fax: +1 408 414 9201

www.powerint.com

For the latest updates, visit our website:

www.powerint.com

Power Integrations reserves the right to make changes to its products at any time to improve reliability or

manufacturability. Power Integrations does not assume any liability arising from the use of any device or circuit

described herein. POWER INTEGRATIONS MAKES NO WARRANTY HEREIN AND SPECIFICALLY DISCLAIMS ALL

WARRANTIES INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF MERCHANTABILITY,

FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY RIGHTS.

PATENT INFORMATION

The products and applications illustrated herein (including transformer construction and circuits external to the products)

may be covered by one or more U.S. and foreign patents, or potentially by pending U.S. and foreign patent applications

assigned to Power Integrations. A complete list of Power Integrations’ patents may be found at www.powerint.com.

Power Integrations grants its customers a license under certain patent rights as set forth at

http://www.powerint.com/ip.htm.

The PI Logo, TOPSwitch, TinySwitch, LinkSwitch, DPA-Switch, PeakSwitch, EcoSmart, Clampless, E-Shield, Filterfuse, StackFET,

PI Expert and PI FACTS are trademarks of Power Integrations, Inc. Other trademarks are property of their respective

Power Integrations Worldwide Sales Support Locations

WORLD HEADQUARTERS

5245 Hellyer Avenue

San Jose, CA 95138, USA.

Main: +1-408-414-9200

Customer Service:

Phone: +1-408-414-9665

Fax: +1-408-414-9765

e-mail: usasales@powerint.com

GERMANY

Rueckertstrasse 3

D-80336, Munich

Germany

Phone: +49-89-5527-3911

Fax: +49-89-5527-3920

e-mail: eurosales@powerint.com

JAPAN

Kosei Dai-3 Bldg.,

2-12-11, Shin-Yokohama,

Kohoku-ku, Yokohama-shi,

Kanagawa 222-0033

Phone: +81-45-471-1021

Fax: +81-45-471-3717

e-mail:

japansales@powerint.com

TAIWAN

5F, No. 318, Nei Hu Rd., Sec. 1

Nei Hu Dist.

Taipei, Taiwan 114, R.O.C.

Phone: +886-2-2659-4570

Fax: +886-2-2659-4550

e-mail:

taiwansales@powerint.com

CHINA (SHANGHAI)

Rm 1601/1610, Tower 1,

Kerry Everbright City

No. 218 Tianmu Road West,

Shanghai, P.R.C. 200070

Phone: +86-21-6354-6323

Fax: +86-21-6354-6325

e-mail:

chinasales@powerint.com

INDIA

#1, 14th Main Road

Vasanthanagar

Bangalore-560052 India

Phone: +91-80-41138020

Fax: +91-80-41138023

e-mail: indiasales@powerint.com

KOREA

RM 602, 6FL

Korea City Air Terminal B/D,

159-6

Samsung-Dong, Kangnam-

Gu,

Seoul, 135-728, Korea

Phone: +82-2-2016-6610

Fax: +82-2-2016-6630

e-mail:

kore

asales@powerint.com

UNITED KINGDOM

1st Floor, St. James’s House

East Street, Farnham

Surrey, GU9 7TJ

United Kingdom

Phone: +44 (0) 1252-730-141

Fax: +44 (0) 1252-727-689

e-mail:

eurosales@powerint.com

CHINA (SHENZHEN)

Rm A, B & C 4th Floor, Block C,

Electronics Science and

Technology Building, 2070

Shennan Zhong Rd,

Shenzhen, Guangdong,

China, 518031

Phone: +86-755-8379-3243

Fax: +86-755-8379-5828

e-mail:

chinasales@powerint.com

ITALY

Via De Amicis 2

20091 Bresso MI – Italy

Phone: +39-028-928-6000

Fax: +39-028-928-6009

e-mail: eurosales@powerint.com

SINGAPORE

51 Newton Road,

#15-08/10 Goldhill Plaza,

Singapore, 308900

Phone: +65-6358-2160

Fax: +65-6358-2015

e-mail:

singaporesales@powerint.com

APPLICATIONS HOTLINE

World Wide +1-408-414-9660

APPLICATIONS FAX

World Wide +1-408-414-9760

LNK625PG (RDR-201) Datasheet by Power Integrations

Products related to this Datasheet
