USB3CFTV Series Rugged USB-C® Standard Connectors

Amphenol’s IP68 sealed USB Type-C connectors are ideal for harsh environments

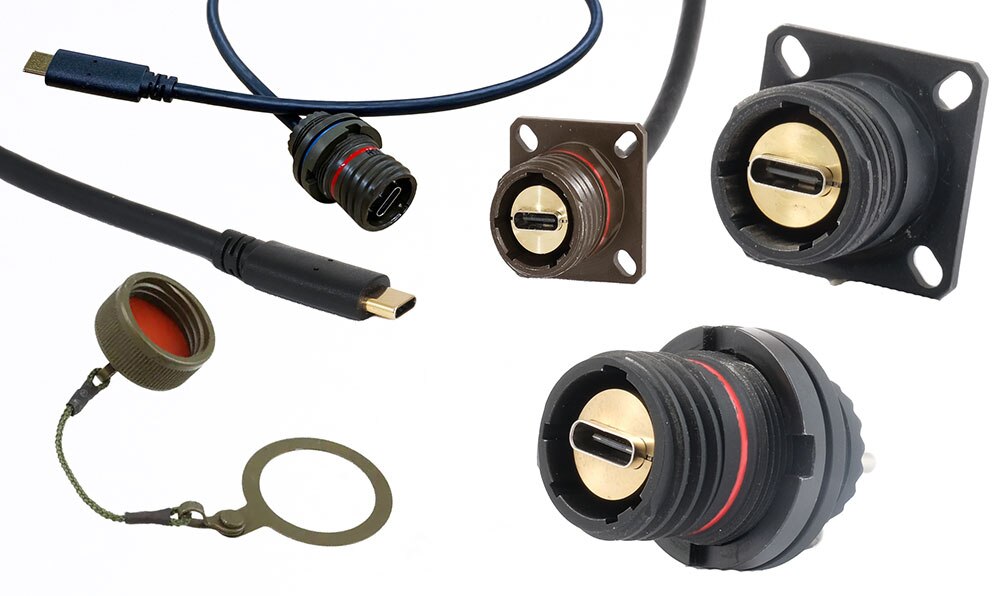

Image of Amphenol PCD's USB3CFTV Series Rugged USB-C Standard ConnectorsAmphenol’s USB3CFTV ruggedized USB-C standard connectors are based on the Series III MIL-DTL-38999. Plugs and receptacles are mated using a tri-start threaded coupling mechanism. This mating solution strengthens and protects devices against fluids, dust, shocks, and disconnection due to vibration. These versatile connectors are housed in a size 11 shell and provide EMI protection with shielding continuity. There are no special tools required for cabling adaptation. The benefits of the USB-C include the flexibility to design many different data transmissions, power delivery, and video configurations with the advantages of Amphenol’s know-how in ruggedized connector solutions.

The USB3CFTV series is IP68 sealed for mated pairs and unmated receptacles (with sealed USB-C cordset). A variety of materials and platings allow for customer satisfaction based on application. Data and power transmission are fully reversible for both the plug and receptacle. Compatible with USB 3.2 Gen 1, these connectors allow for 5 A intensity and 20 V voltage.

Features
  • MIL-DTL-38999 Series III, threaded coupling
  • Shell size 11
  • Fully reversible for plug and receptacle
  • Shock, vibration, and traction resistant
  • 500+ mating cycles for plug and receptacles
  • IP68 sealing for mated pairs and unmated receptacles (with sealed USB-C cordset)
  • EMI protection: shielding continuity
  • Compatible with USB 3.2 Gen 1
  • Intensity: 5 A max.
  • Voltage: 20 V max.
  • Dielectric withstanding voltage: 100 VAC
  • Available in RoHS compliant plating
  • Operating temperature: -40°C to +85°C (-40°F to +185°F)
Applications
  • C5ISR
  • Battlefield communication
  • Ground vehicles
  • Naval
  • Rugged computing and rugged displays
  • Soldier worn

USB3CFTV Series Rugged USB-C Standard Connectors

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
USB-C PLUG, ALUMINIUM SHELL WITHUSB3CFTV6GUSB-C PLUG, ALUMINIUM SHELL WITH36 - Immediate$5,391.10View Details
USB-C PLUG, ALUMINIUM SHELL WITHUSB3CFTV6NUSB-C PLUG, ALUMINIUM SHELL WITH28 - Immediate$5,391.10View Details
USB-C PLUG, ALUMINIUM SHELL WITHUSB3CFTV6ZNUSB-C PLUG, ALUMINIUM SHELL WITH26 - Immediate$6,357.98View Details
USB-C SQUARE FLANGE RECEPTACLE,USB3CFTV22GUSB-C SQUARE FLANGE RECEPTACLE,17 - Immediate$12,959.05View Details
USB-C SQUARE FLANGE RECEPTACLE,USB3CFTV22NUSB-C SQUARE FLANGE RECEPTACLE,14 - Immediate$12,959.05View Details
USB-C JAM NUT RECEPTACLE, MALE UUSB3CFTV72GUSB-C JAM NUT RECEPTACLE, MALE U0 - Immediate$13,555.10View Details

USB3CFTV Series USB Cable Assemblies

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
USB-C SQUARE FLANGE RECEPTACLE,USB3CFTV2G030USB-C SQUARE FLANGE RECEPTACLE,0 - Immediate$22,420.13View Details
USB-C SQUARE FLANGE RECEPTACLE,USB3CFTV2N030USB-C SQUARE FLANGE RECEPTACLE,2 - Immediate$22,420.13View Details
USB-C JAM NUT RECEPTACLE, ALUMINUSB3CFTV7N015USB-C JAM NUT RECEPTACLE, ALUMIN0 - Immediate$22,420.45View Details
USB-C JAM NUT RECEPTACLE, ALUMINUSB3CFTV7G015USB-C JAM NUT RECEPTACLE, ALUMIN0 - Immediate$22,420.45View Details
USB-C SQUARE FLANGE RECEPTACLE,USB3CFTV2N015USB-C SQUARE FLANGE RECEPTACLE,2 - Immediate$21,886.80View Details
USB-C SQUARE FLANGE RECEPTACLE,USB3CFTV2G015USB-C SQUARE FLANGE RECEPTACLE,2 - Immediate$24,848.20View Details

USB3CFTV Series Circular Connector Accessories

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
USB-C SQUARE FLANGE CAP, ALUMINUUSB3CFTVC2GUSB-C SQUARE FLANGE CAP, ALUMINU32 - Immediate$1,416.03View Details
USB-C SQUARE FLANGE PLUG CAP, ALUSB3CFTVC6GUSB-C SQUARE FLANGE PLUG CAP, AL9 - Immediate$1,327.95View Details
USB-C SQUARE FLANGE RECEPTACLE CUSB3CFTVC2ZNUSB-C SQUARE FLANGE RECEPTACLE C18 - Immediate$1,527.50View Details
USB-C SQUARE FLANGE CAP, ALUMINUUSB3CFTVC2NUSB-C SQUARE FLANGE CAP, ALUMINU20 - Immediate$1,548.30View Details
USB-C SQUARE FLANGE PLUG CAP, ALUSB3CFTVC6ZNUSB-C SQUARE FLANGE PLUG CAP, AL25 - Immediate$1,569.10View Details
USB-C JAM NUT RECEPTACLE CAP, ALUSB3CFTVC7GUSB-C JAM NUT RECEPTACLE CAP, AL4 - Immediate$1,579.50View Details
USB-C SQUARE FLANGE PLUG CAP, ALUSB3CFTVC6NUSB-C SQUARE FLANGE PLUG CAP, AL10 - Immediate$1,590.23View Details
USB-C JAM NUT RECEPTACLE CAP, ALUSB3CFTVC7ZNUSB-C JAM NUT RECEPTACLE CAP, AL12 - Immediate$2,029.95View Details
USB-C JAM NUT RECEPTACLE CAP, ALUSB3CFTVC7NUSB-C JAM NUT RECEPTACLE CAP, AL6 - Immediate$1,891.18View Details
USB-C JAM NUT RECEPTACLE CAP, ALUSB3CFTVC7NF057USB-C JAM NUT RECEPTACLE CAP, AL21 - Immediate$2,002.00View Details
USB-C JAM NUT RECEPTACLE CAP, ALUSB3CFTVC7GF057USB-C JAM NUT RECEPTACLE CAP, AL0 - ImmediateSee Page for PricingView Details
USB-C JAM NUT RECEPTACLE CAP, ALUSB3CFTVC7ZNF057USB-C JAM NUT RECEPTACLE CAP, AL11 - Immediate$2,780.05View Details
Published: 2023-08-08
