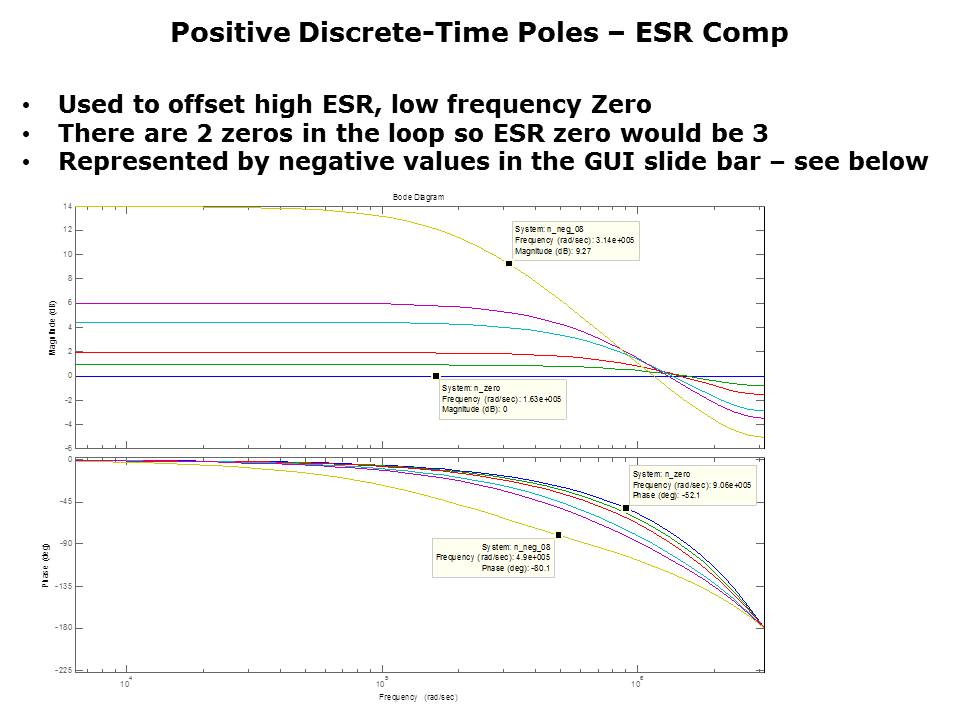

As the slider in PowerArchitect 4 is moved to the left, the positive pole also moves to the left. The goal is to place the pole frequency equal to the ESR zero frequency to ensure stability.
