Visual Communications Company, LLC

LED Panel-Mount Indicator

Visual Communications Company offers a robust LED panel-mount indicator ideal for frequent on-off cycling

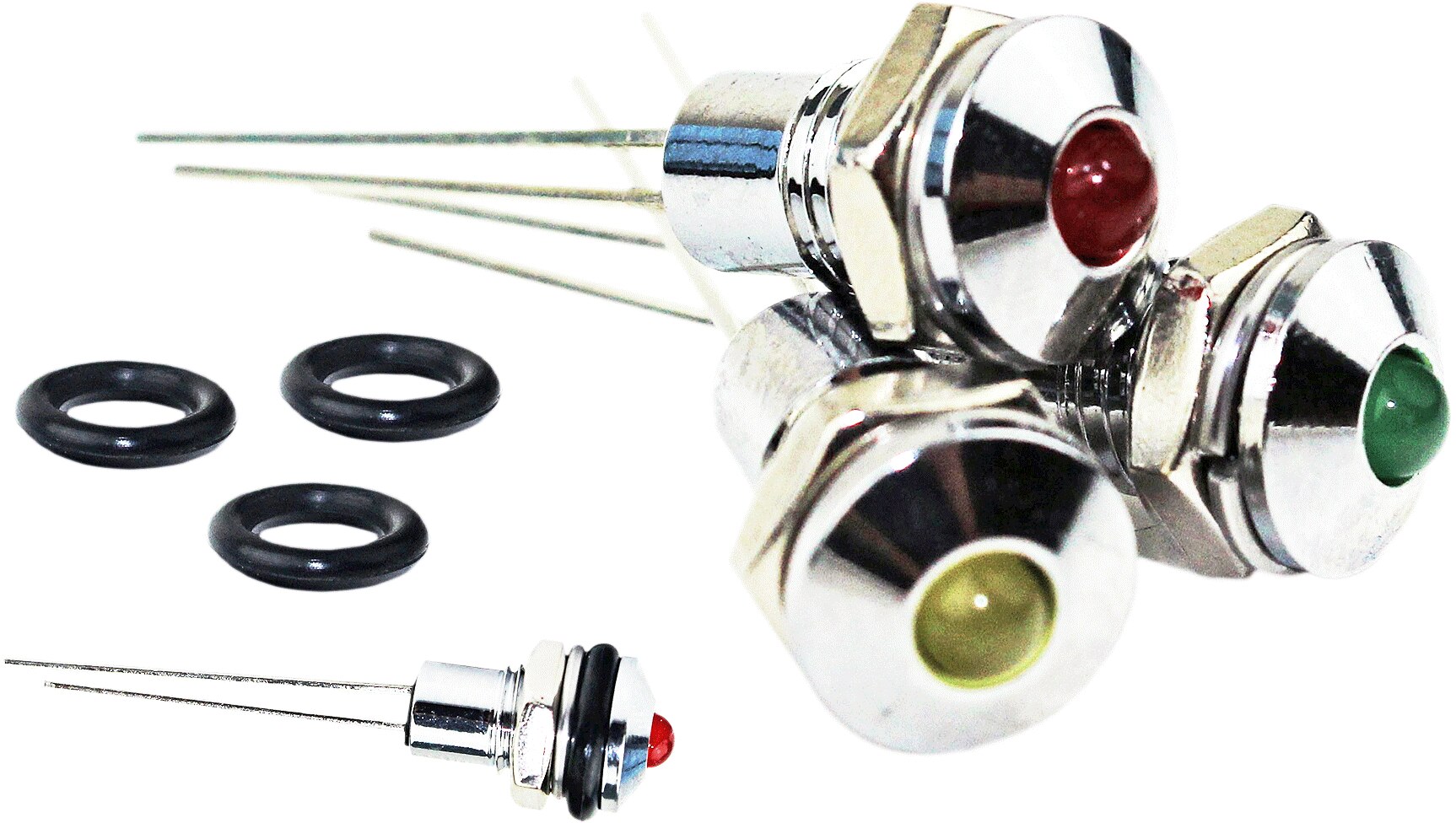

Image of Visual Communications Company's LED Panel Mount IndicatorVisual Communications Company introduces their 3 mm robust LED panel-mount indicator series with a 0.244" mounting hole which are ideal for frequent on-off cycling.

Video: L63 LED series Robust Panel Mount Indicator

Key Benefits
  • L63 series offers a robust body with a round protruding LED position which provide up to a 50 degree viewing angle
  • Available with red, green, and yellow LEDs and offer benefits such as a high contrast, small size, long lamp life, low heat output
  • LEDs achieve full brightness in microseconds and are ideal for use in applications that are subject to frequent on-off cycling
  • Rugged vibration LED indicators are well suited for a number of applications, including industrial control panels, transportation dashboards, and aircraft instrumentation
  • O-ring accessory available for watertight applications
Specifications
  • Available in a robust body and protruding LED position for front panel mounting
  • Mounting hole size: 0.244” (6.2 mm)
  • Max. panel thickness: 0.118” (3.0 mm)
  • Diffused 3 mm LED (T1) offered in red, green, or yellow color
  • 25 degree to 50 degree viewing angle
  • Straight leads termination
  • Body material: brass, chromium-plated
  • Operating voltage of 2 VDC to 3.2 VDC
  • Mounting hardware provided
  • Accessories: O-ring gasket to secure for water, dust, and oil tight applications
  • Life expectancy: 100,000 hours
  • Compliant with RoHS and REACH requirements
Applications
  • Industrial
  • Transportation
  • Food service
  • People movers
  • Medical equipment
  • Maritime
  • Oil and gas industry
  • Manufacturing
  • Automation and control
  • Transportation dashboard
  • Electrical control panels
Published: 2016-06-24

LED Panel-Mount Indicator

รูปภาพManufacturer Part NumberคำอธิบายAvailable Quantityราคาดูรายละเอียด
LED PNL IND GREEN DIFF 3MM PCL63DG2LLED PNL IND GREEN DIFF 3MM PC927 - Immediate$78.33ดูรายละเอียด
LED PNL IND RED DIFF 3MM PC PINL63DR2LLED PNL IND RED DIFF 3MM PC PIN1442 - Immediate$75.73ดูรายละเอียด
LED PNL IND YELLOW DIFF 3MM PCL63DY2LLED PNL IND YELLOW DIFF 3MM PC2972 - Immediate$85.48ดูรายละเอียด
